Engine Control System - Introduction (For MEXICO)
›
System Description
›
System
›
Evaporative Emission System
›
EVAPORATIVE EMISSION SYSTEM: System Diagram
EVAPORATIVE EMISSION SYSTEM: System Diagram

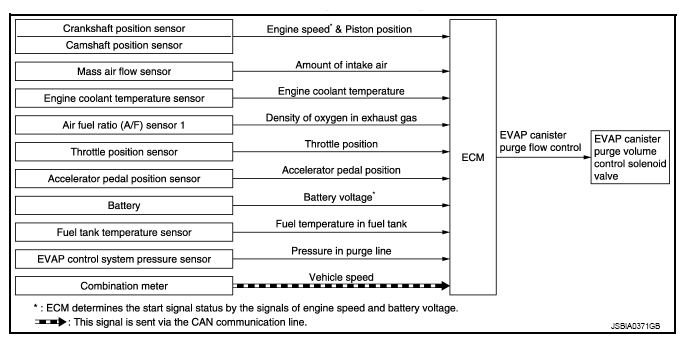

Fig 1: Evaporative Emission - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
