Engine Control System - Introduction
›
System Description
›
System
›
Cooling Fan Control
›
COOLING FAN CONTROL: System Diagram
COOLING FAN CONTROL: System Diagram

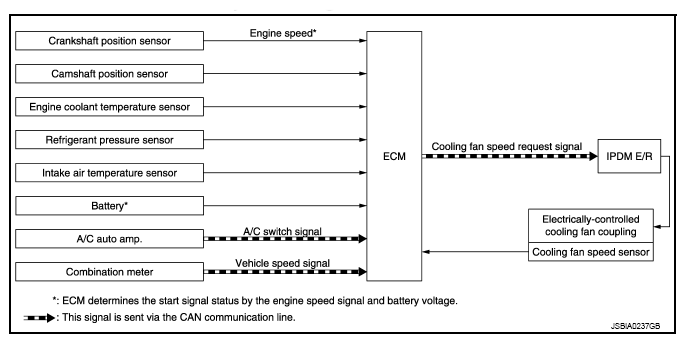

Fig 1: Cooling Fan Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
