Engine Control System - Introduction
›
System Description
›
System
›
Direct Injection Gasoline System
›
DIRECT INJECTION GASOLINE SYSTEM: System Diagram
DIRECT INJECTION GASOLINE SYSTEM: System Diagram

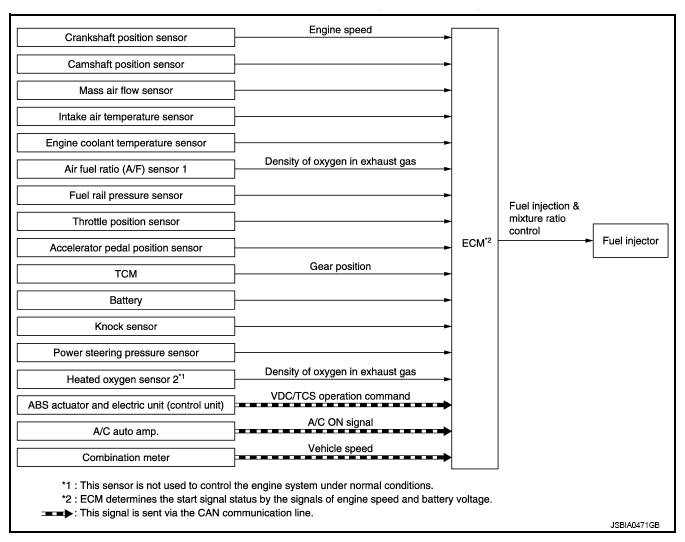

Fig 1: Direct Injection Gasoline - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
