2-Pole Lift

WARNING:
  • When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
  • When setting the lift arm, never allow the arm to contact the brake tubes, brake cable, or fuel lines.

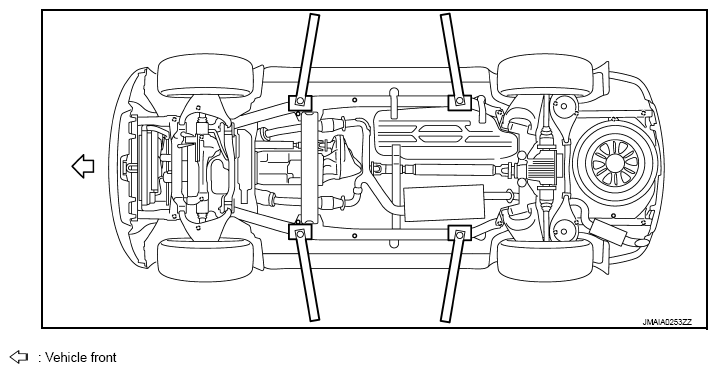

Fig 1: Identifying Lifting Points (2-Pole Lift)
G08258316Courtesy of NISSAN NORTH AMERICA, INC.
