Wheel Alignment: Adjustment: Toe-In

Adjust with adjusting bolt (1) in rear lower link (2).

Toe-In: Refer to "WHEEL ALIGNMENT ".

CAUTION:

Be sure to adjust equally on right and left side with adjusting bolt.
When tightening the nut firmly and checking the torque, use a wrench to prevent the turning of bolt.

If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to "WORK PROCEDURE ".

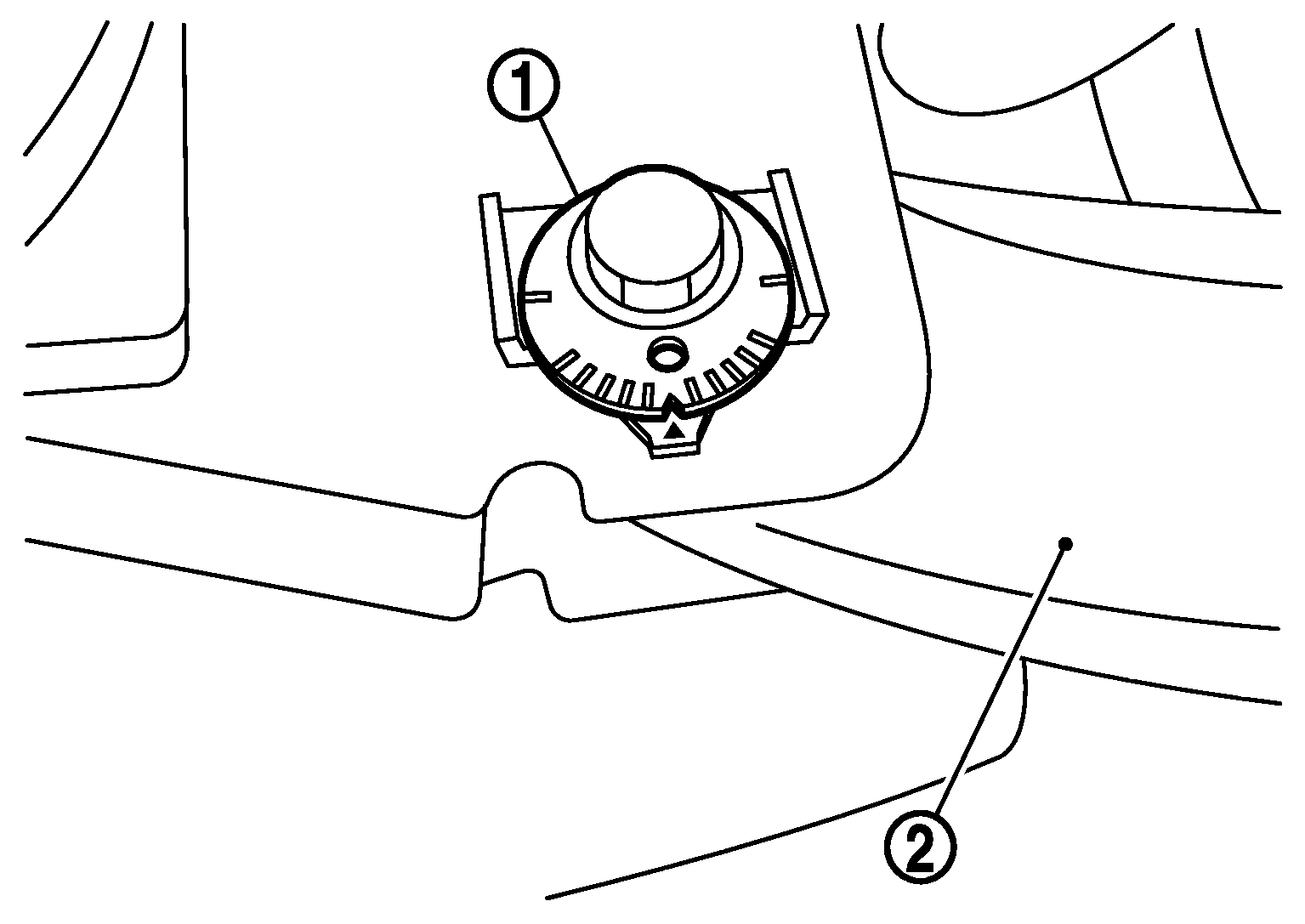

Fig 1: Identifying Rear Lower Link Adjusting Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
