QX56 AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Transaxle
›
System Description
›
System
›
Shift Pattern Control
›
SHIFT PATTERN CONTROL: System Diagram
SHIFT PATTERN CONTROL: System Diagram

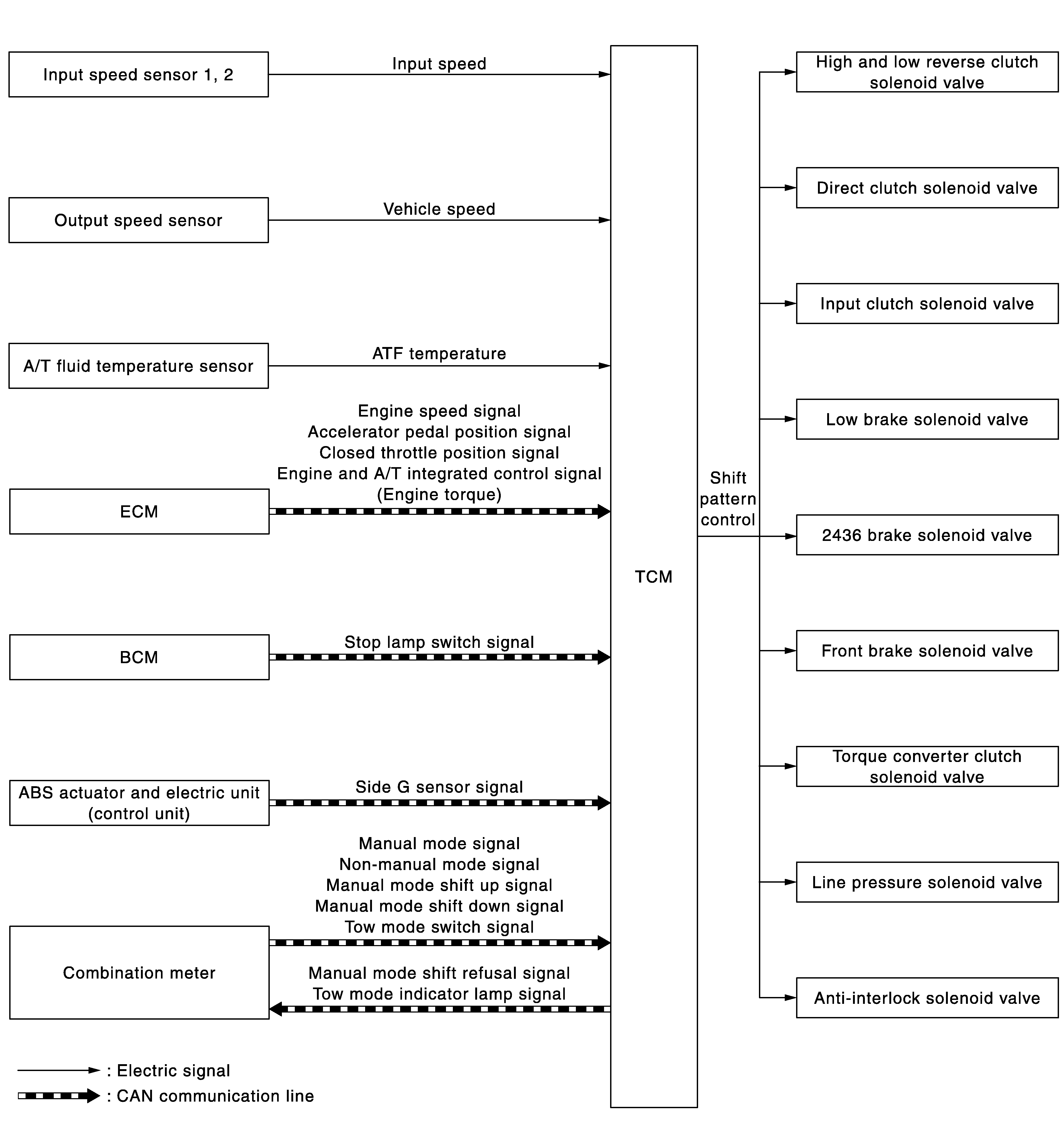

Fig 1: Shift Pattern Control - System Diagram
