Without HBMC

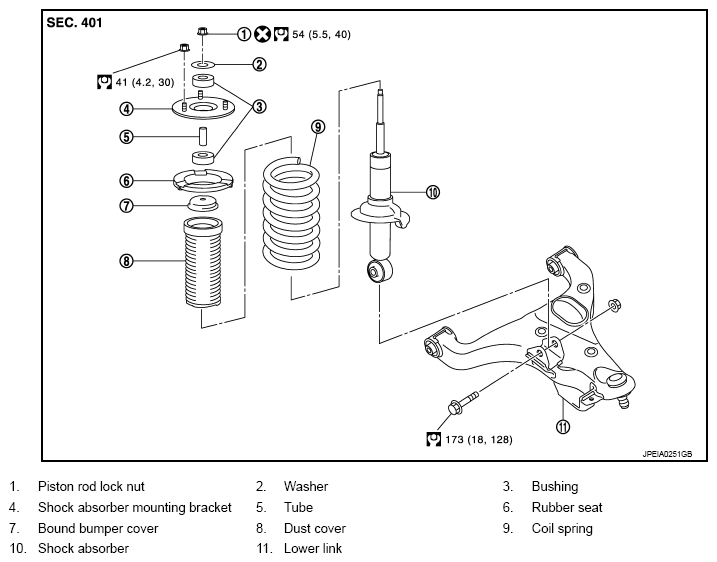

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber (Without HBMC) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
