System Description
›
INFINITI Vehicle Immobilizer System-NATS
›
Component Parts Location
Component Parts Location

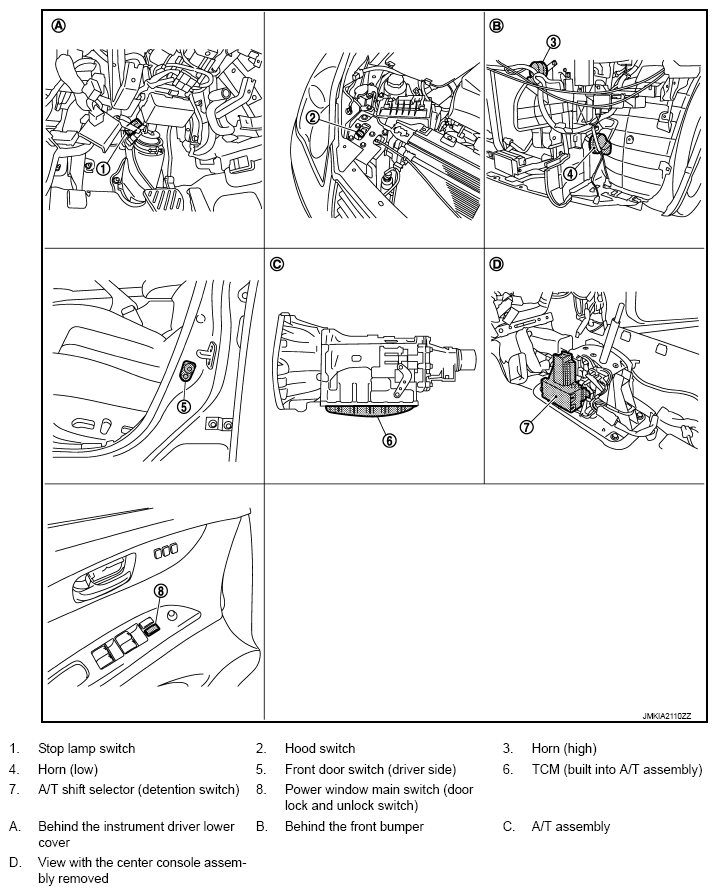

Fig 1: Security Indicator Lamp Components Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

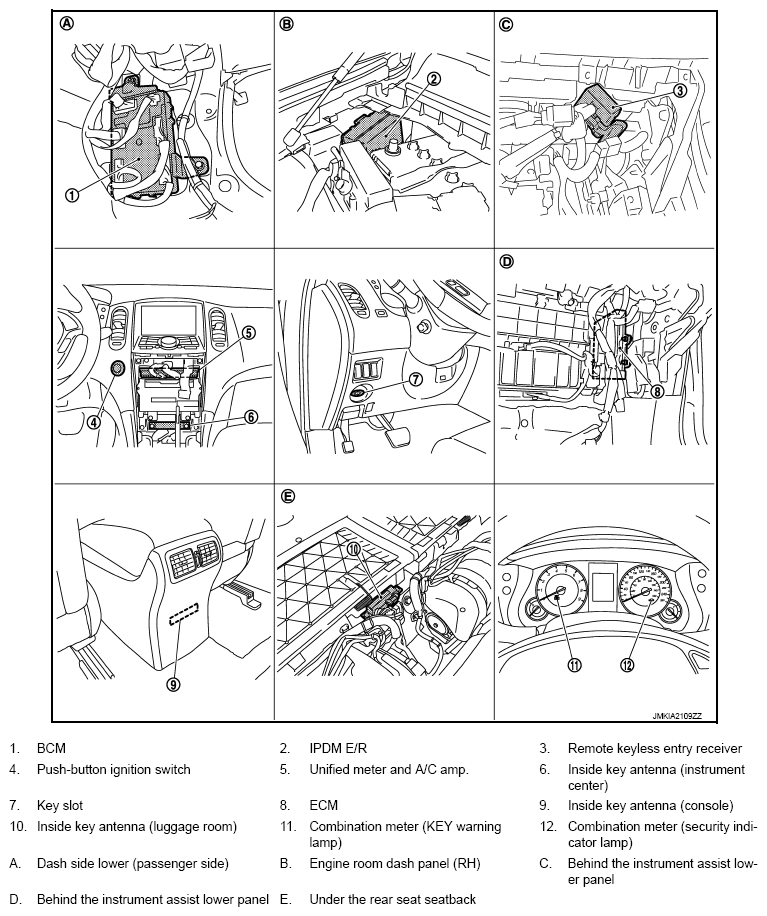

Fig 2: Security Indicator Lamp Components Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
