Sunroof Motor Assembly
›
Exploded View
Exploded View

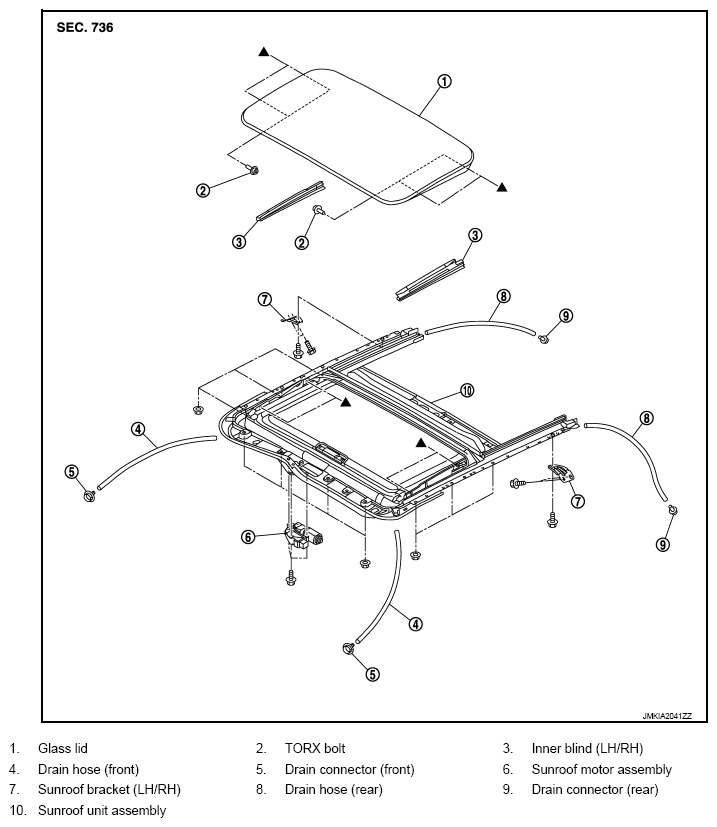

Fig 1: Exploded View Of Sunroof Motor Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
