Infiniti
›
2013
›
EX37 Base, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Sun Roof/T-Top/Convertible Top
›
Removal And Installation
›
Sunshade
›
Exploded View
Exploded View

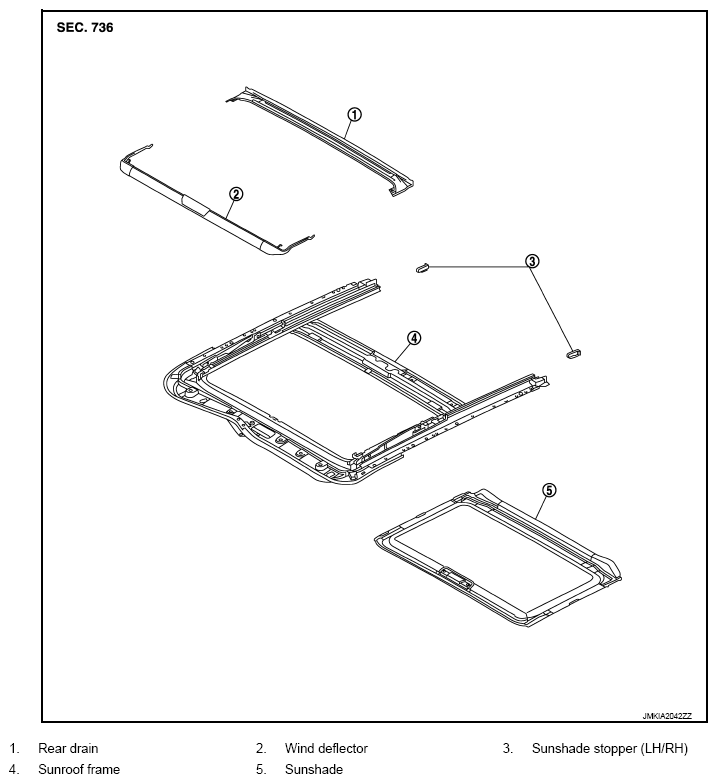

Fig 1: Exploded View Of Sunshade
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
