System Description
›
Abs
›
Component Parts Location
Component Parts Location

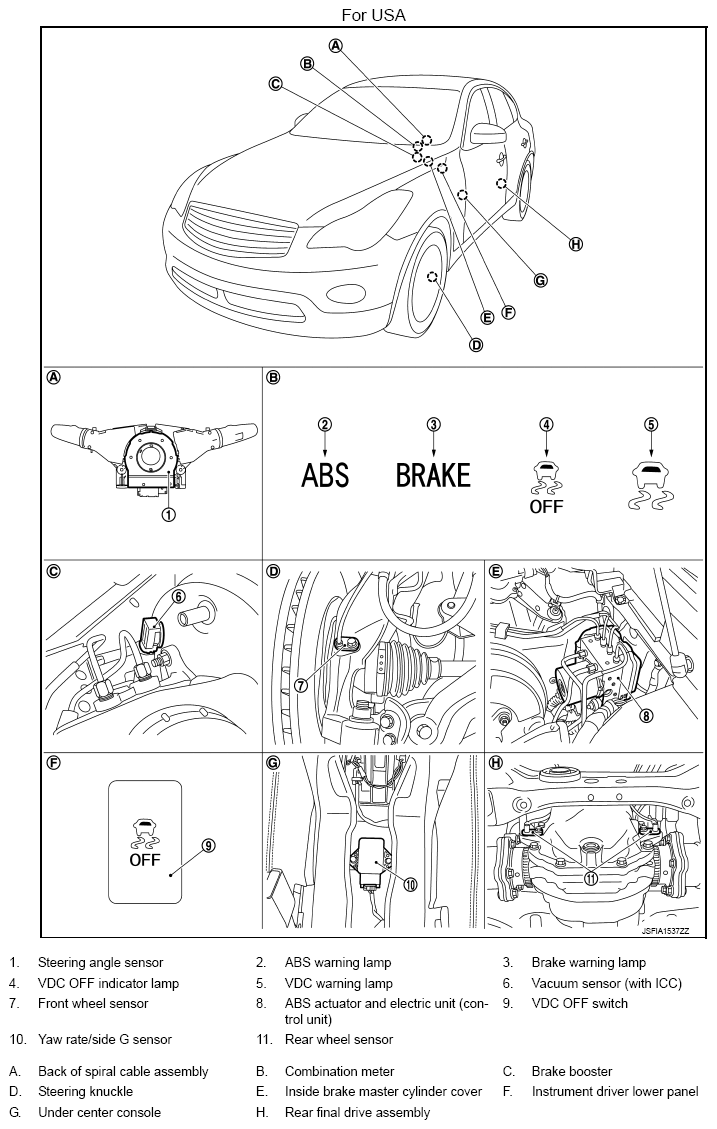

Fig 1: ABS Component Parts Location (USA)
Courtesy of NISSAN NORTH AMERICA, INC.

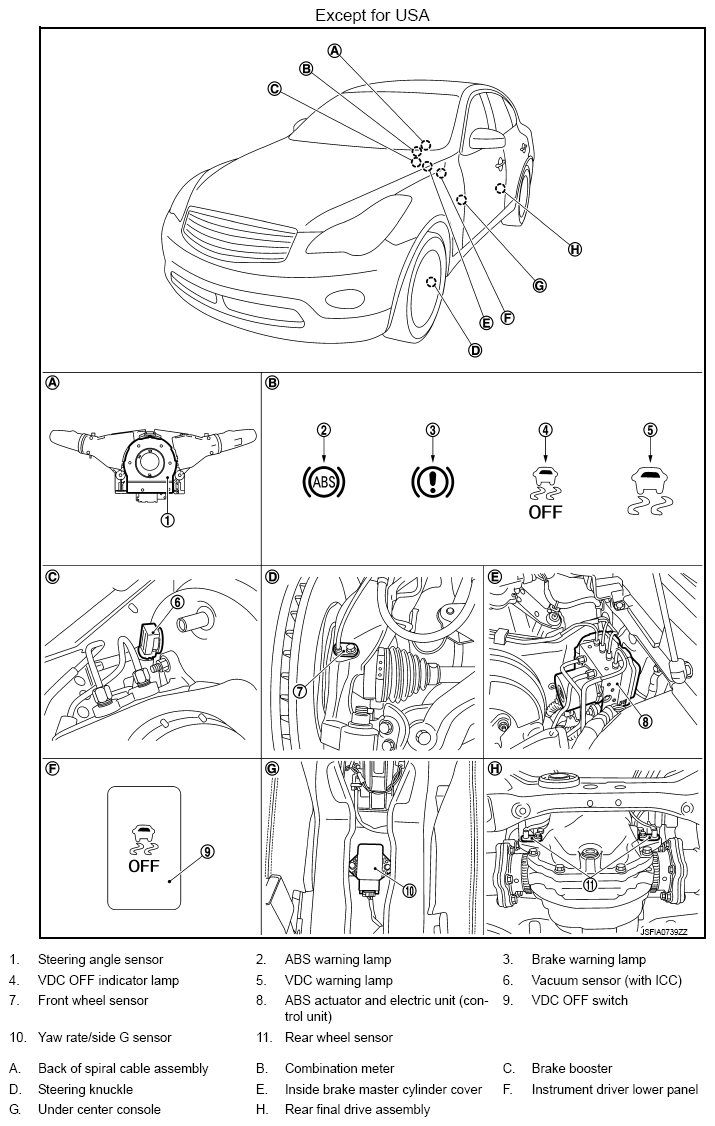

Fig 2: ABS Component Parts Location (Except USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
