System Description
›
EBD
›
Component Parts Location
Component Parts Location

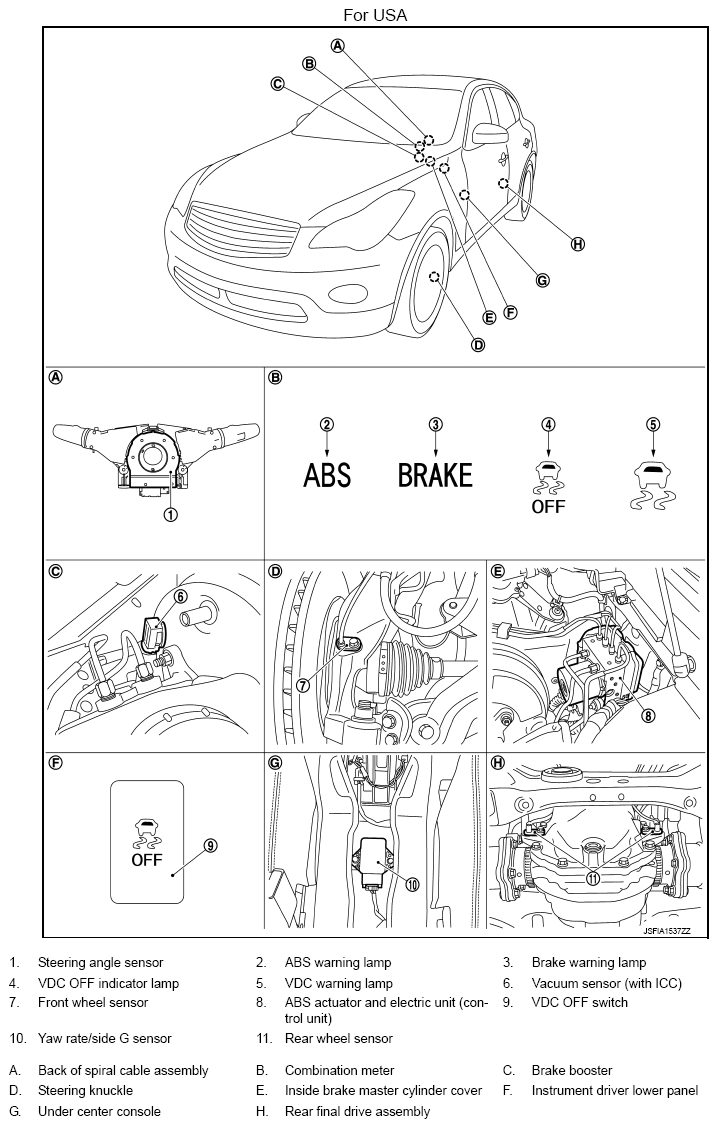

Fig 1: EBD Component Parts Location (USA)
Courtesy of NISSAN NORTH AMERICA, INC.

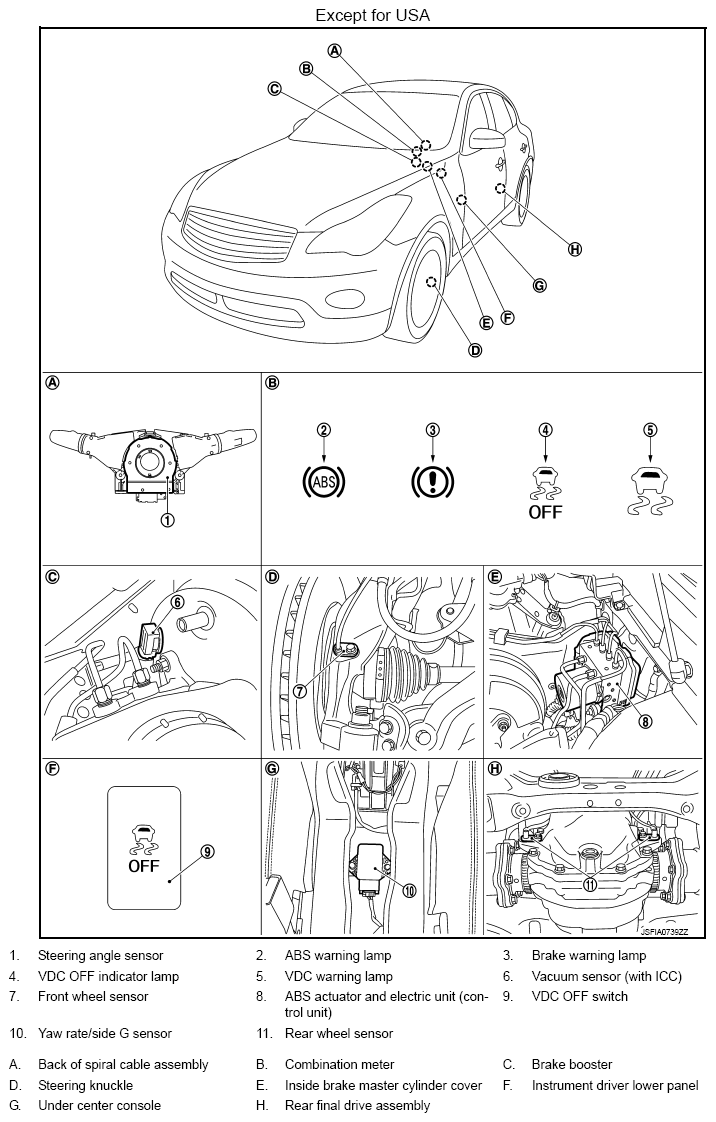

Fig 2: EBD Component Parts Location (Except USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
