2WD: Exploded View: Disassembly

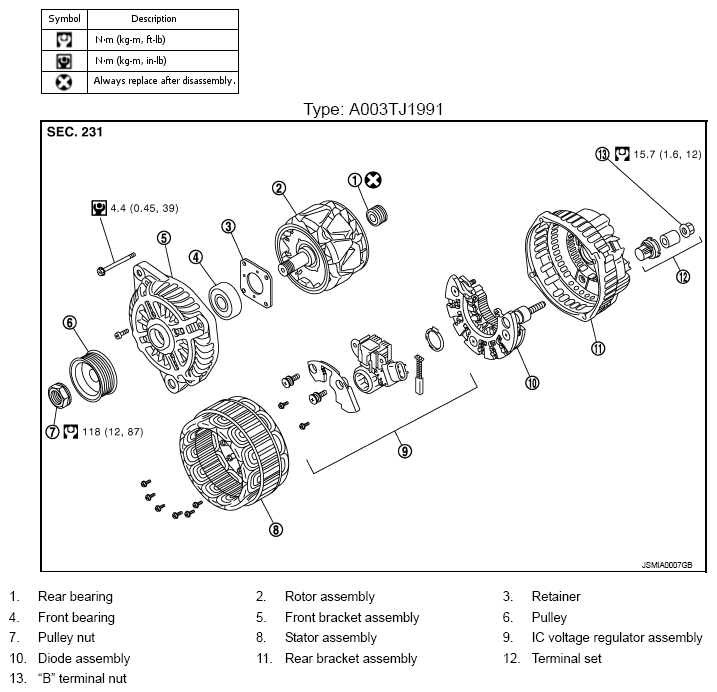

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type: A003TJ1991)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
