Repair and Diagnosis
›
Engine Mechanical
›
Engine Mechanical
›
Removal And Installation
›
Exhaust Manifold
›
Exploded View
Exploded View

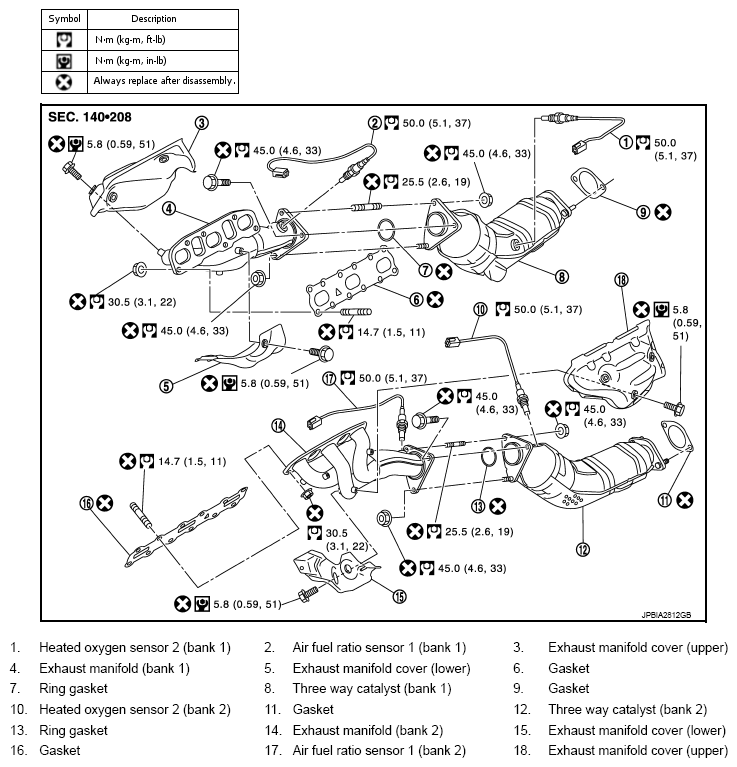

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
