Exploded View

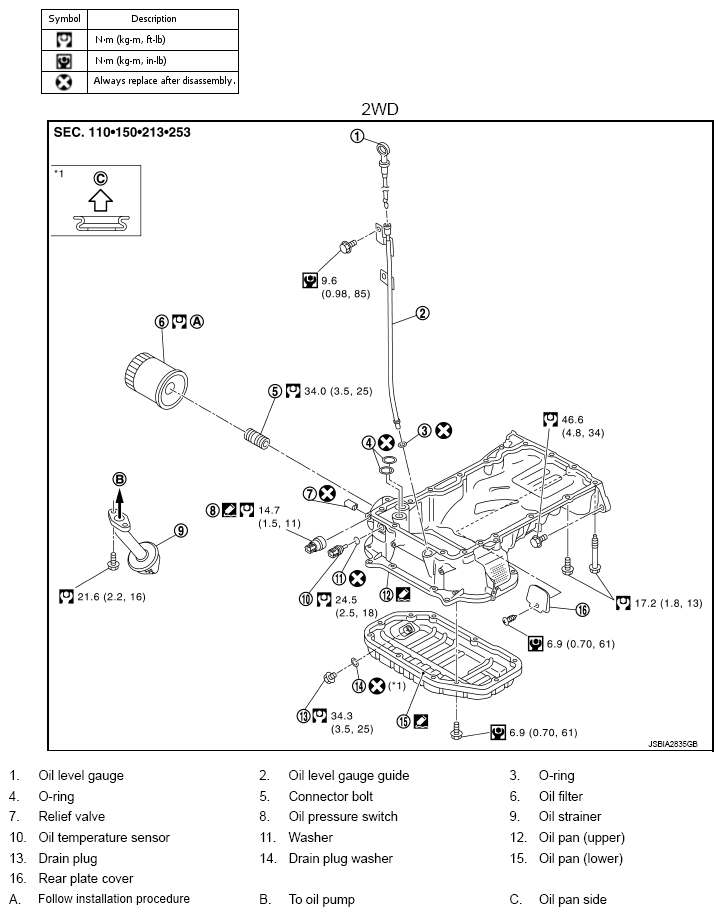

Fig 1: Exploded View Of Lower Oil Pan With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

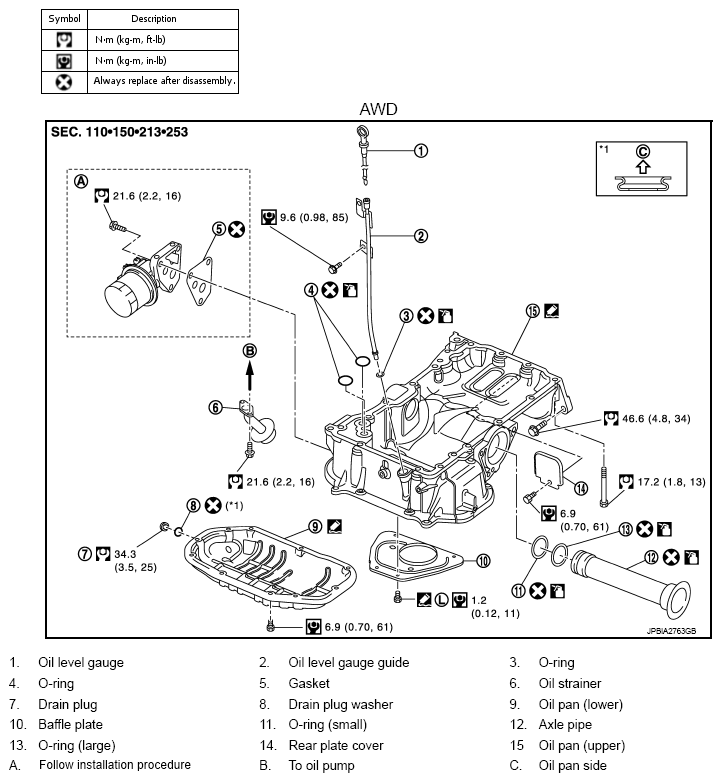

Fig 2: Exploded View Of Lower Oil Pan With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.
