Left Side

WARNING: This page is about a different variant/trim than selected.

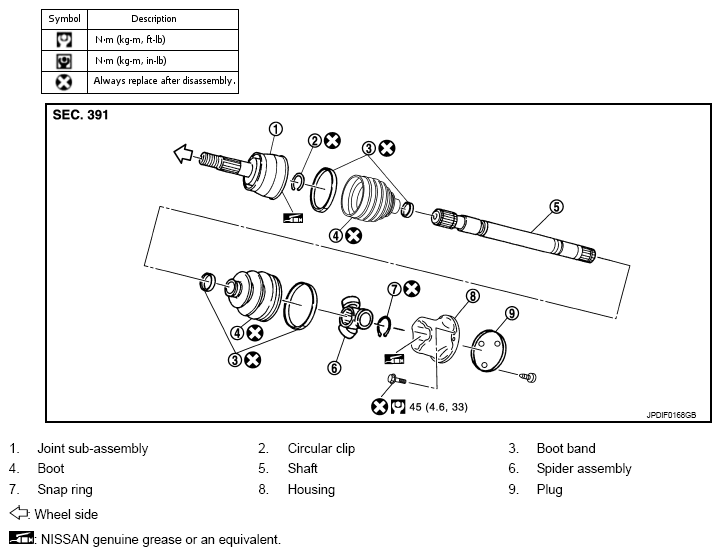

Fig 1: Exploded View Of Left Front Drive Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
