Left Side

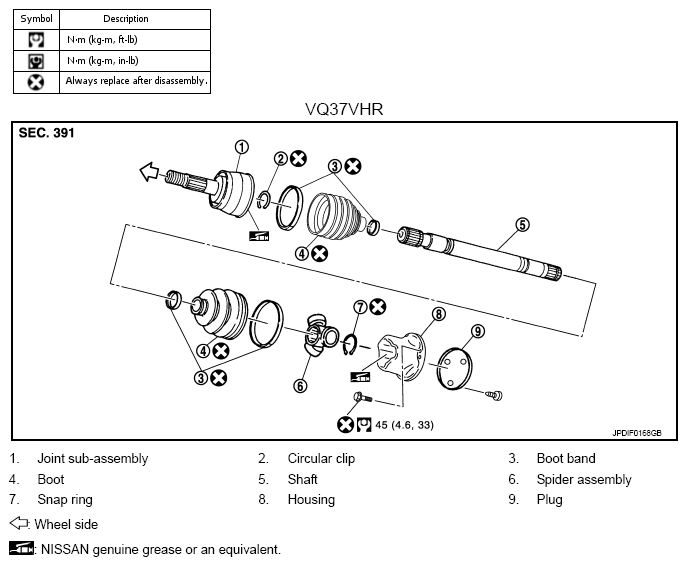

Fig 1: Exploded View Of Front Drive Shaft Left Side Boot (VQ37VHR) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

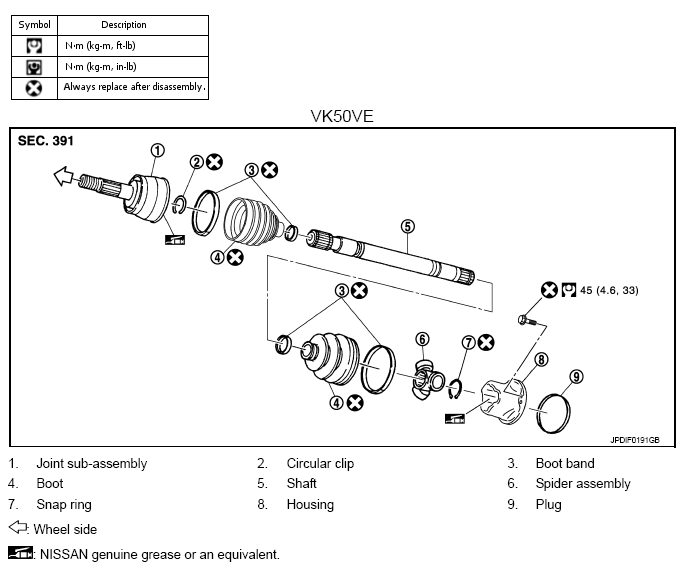

Fig 2: Exploded View Of Front Drive Shaft Left Side Boot (VK50VE) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
