Exploded View

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.

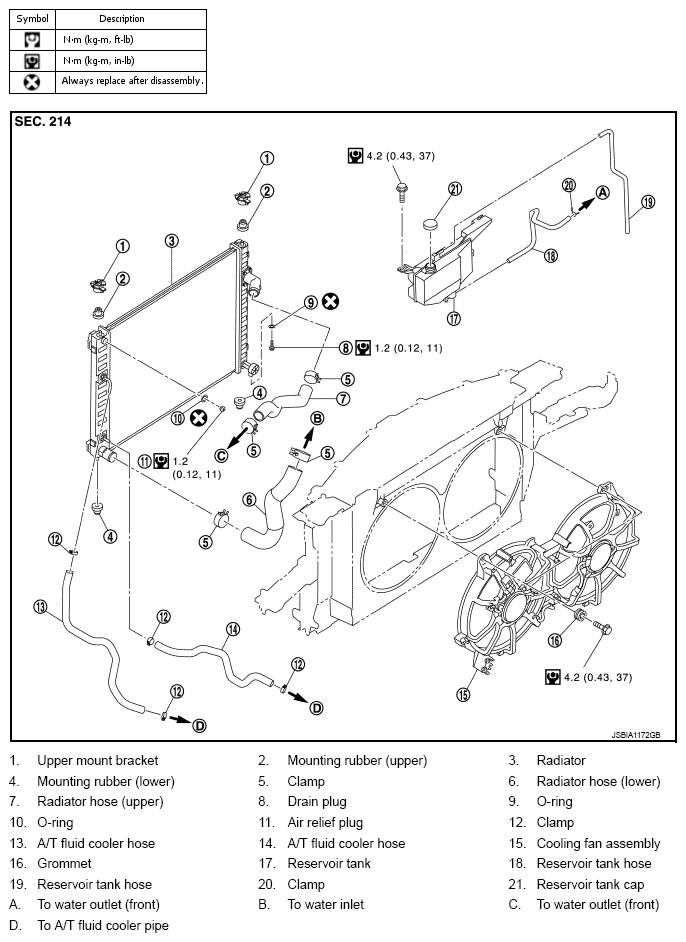

Fig 1: Exploded View Of Radiator

Courtesy of NISSAN NORTH AMERICA, INC.
