Under Drive Carrier, Front Brake Hub: Disassembly

  1. Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch front brake hub and under drive carrier assembly.
    • Be careful not to damage snap ring.

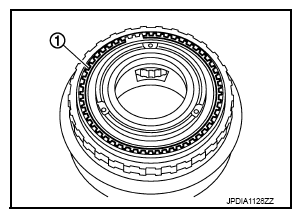

    Fig 1: Locating Front Brake Hub Snap Ring
    G09002081Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove under drive carrier assembly (1) from front brake hub.
    Fig 2: Removing Front Brake Hub Drive Carrier Assembly
    G09002082Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove snap ring (1) from front brake hub using a flat-bladed screwdriver.
    CAUTION:
    • Be careful not to scratch front brake hub.
    • Be careful not to damage snap ring.
    Fig 3: Locating Front Brake Hub Snap Ring
    G09002083Courtesy of NISSAN NORTH AMERICA, INC.
