Audio, Visual & Navigation System (Navigation)
›
System Description
›
System
›
Multi Av System
›
MULTI AV SYSTEM: System Diagram
MULTI AV SYSTEM: System Diagram

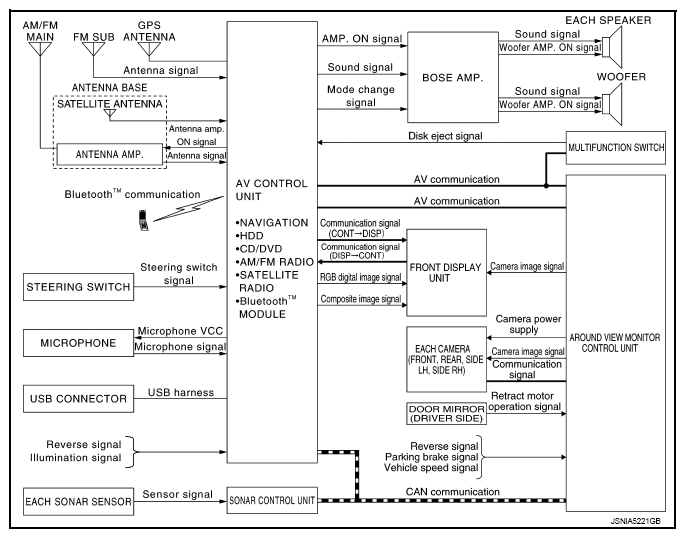

Fig 1: Multi AV System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
An antenna base integrated with antenna amp. is adopted.
