Oil Channel
Oil Channel

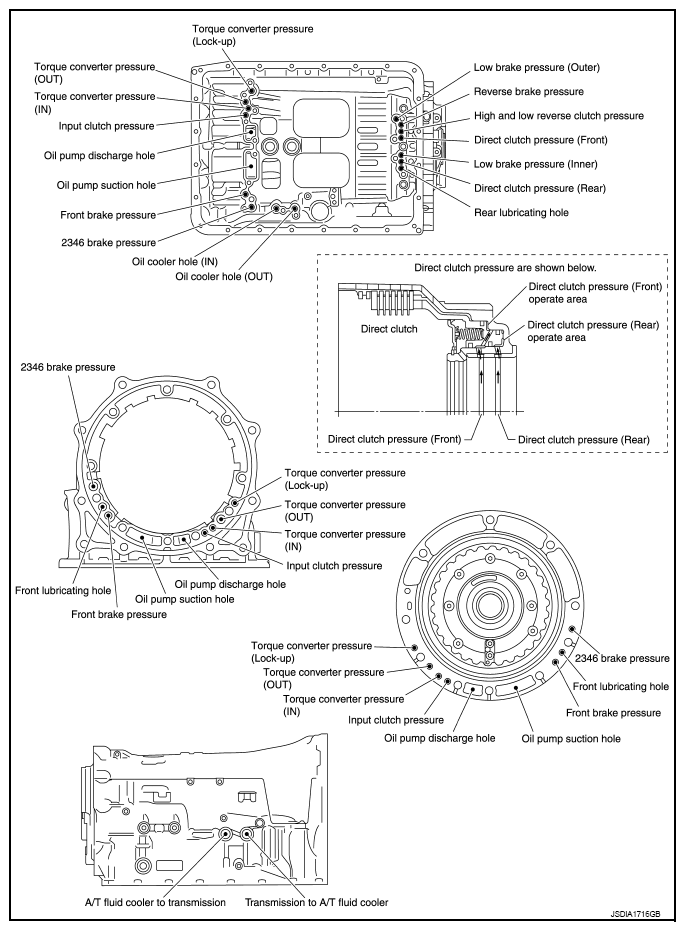

Fig 1: Identifying Transmission Assembly Oil Channel Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
