System Description
›
Signal Buffer System
›
System Diagram
System Diagram

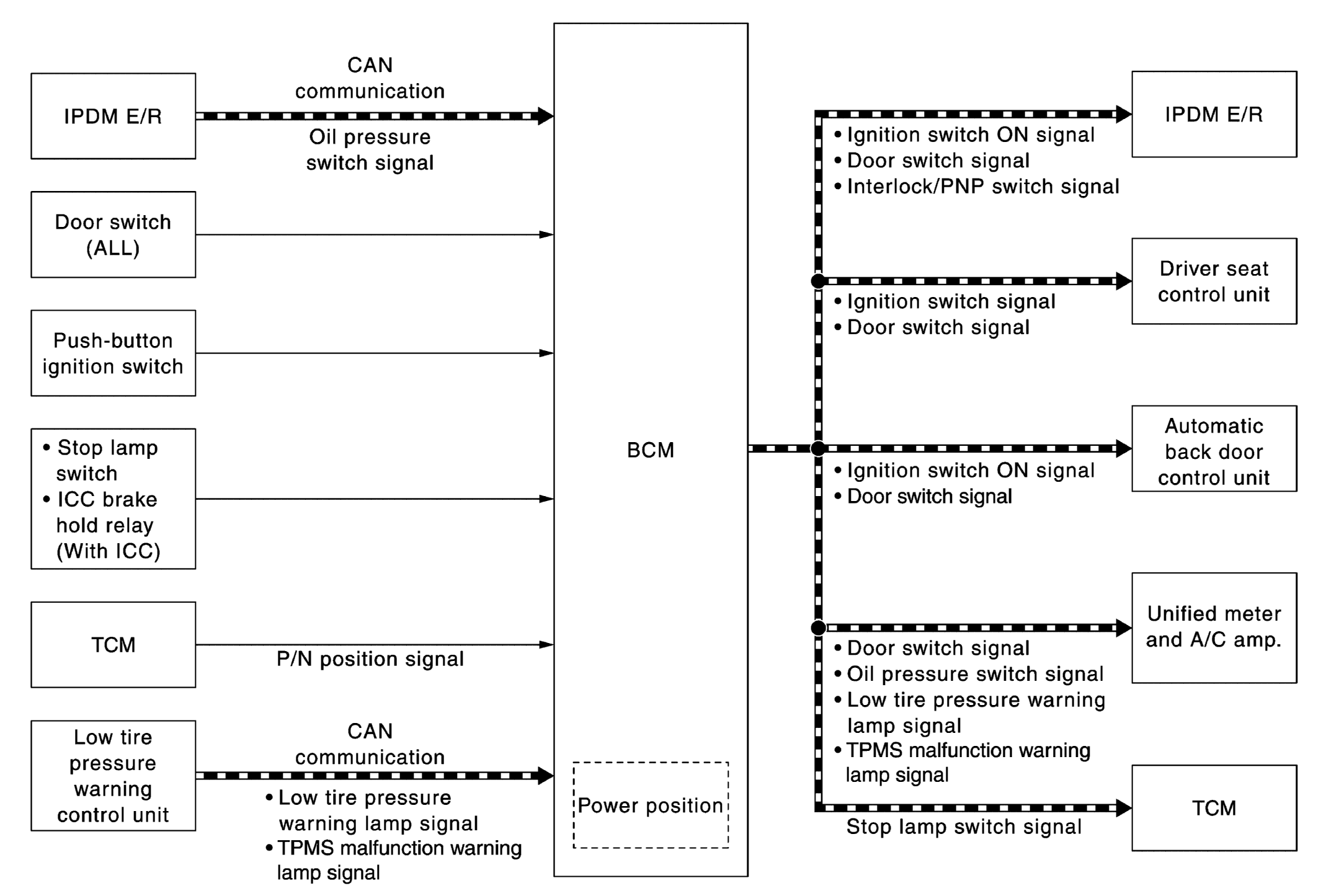

Fig 1: Signal Buffer System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
