Engine Control System (Introduction)
›
System Description
›
Engine Control System
›
System Diagram
System Diagram

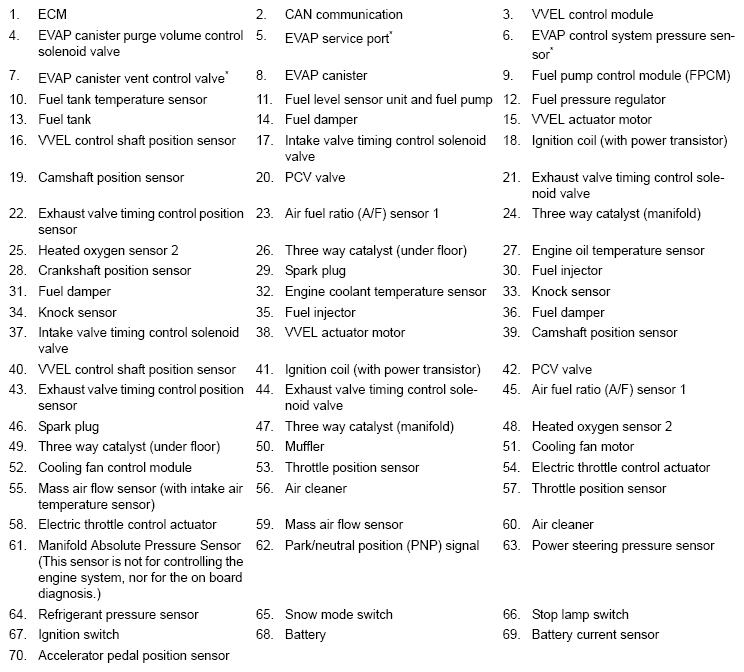

Fig 1: Engine Control System Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

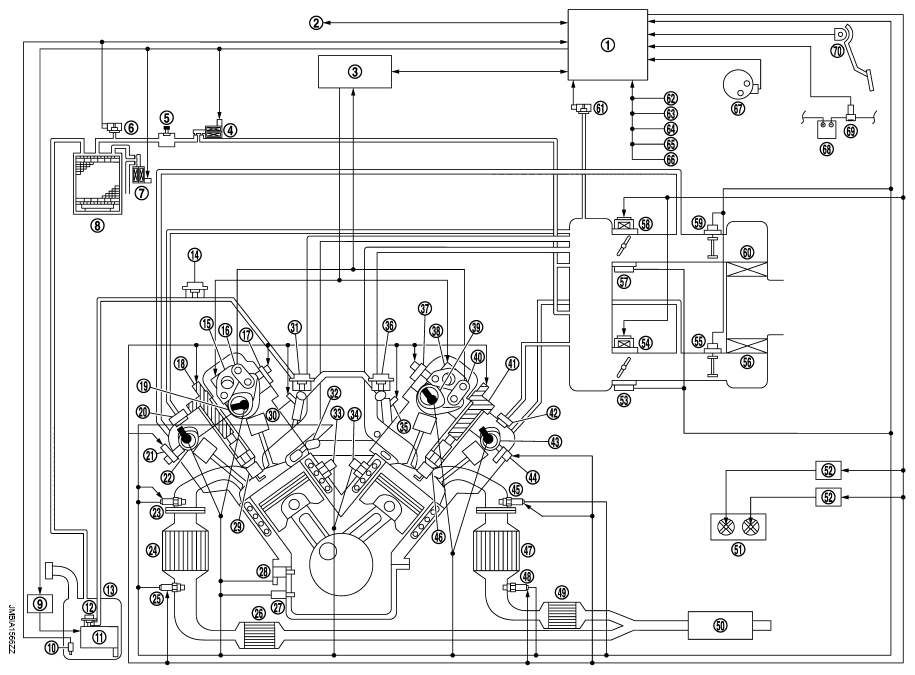

Fig 2: Engine Control System Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
*: Except for Mexico
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
