2WD: Exploded View

WARNING: This page is about a different car, the 2013 Infiniti FX37. However, it is still accessible from the selected car via links, so may be relevant.

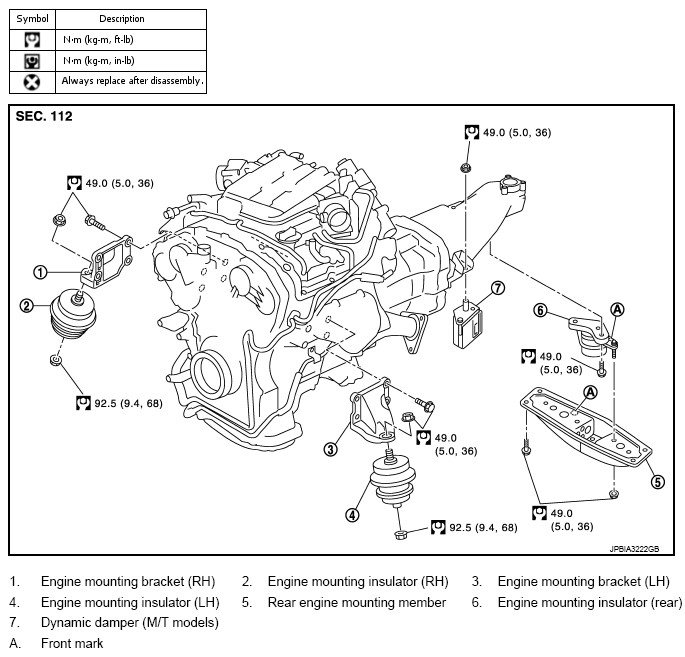

Fig 1: Exploded View Of Engine Assembly (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.
