Engine Cooling System

WARNING: This page is about a different car, the 2013 Infiniti FX37. However, it is still accessible from the selected car via links, so may be relevant.

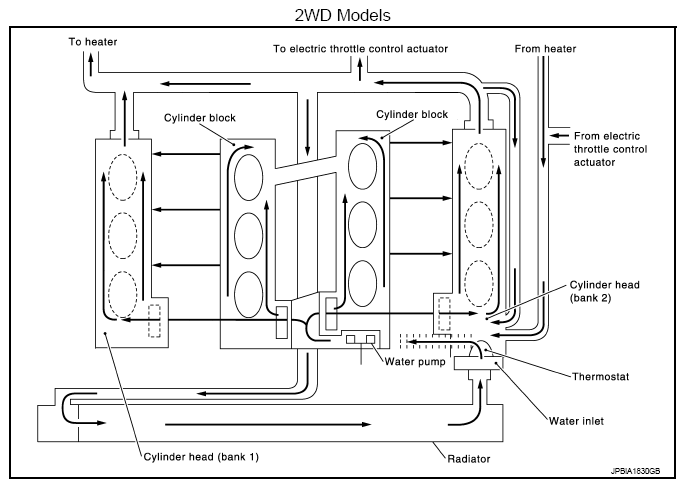

Fig 1: Engine Cooling System (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

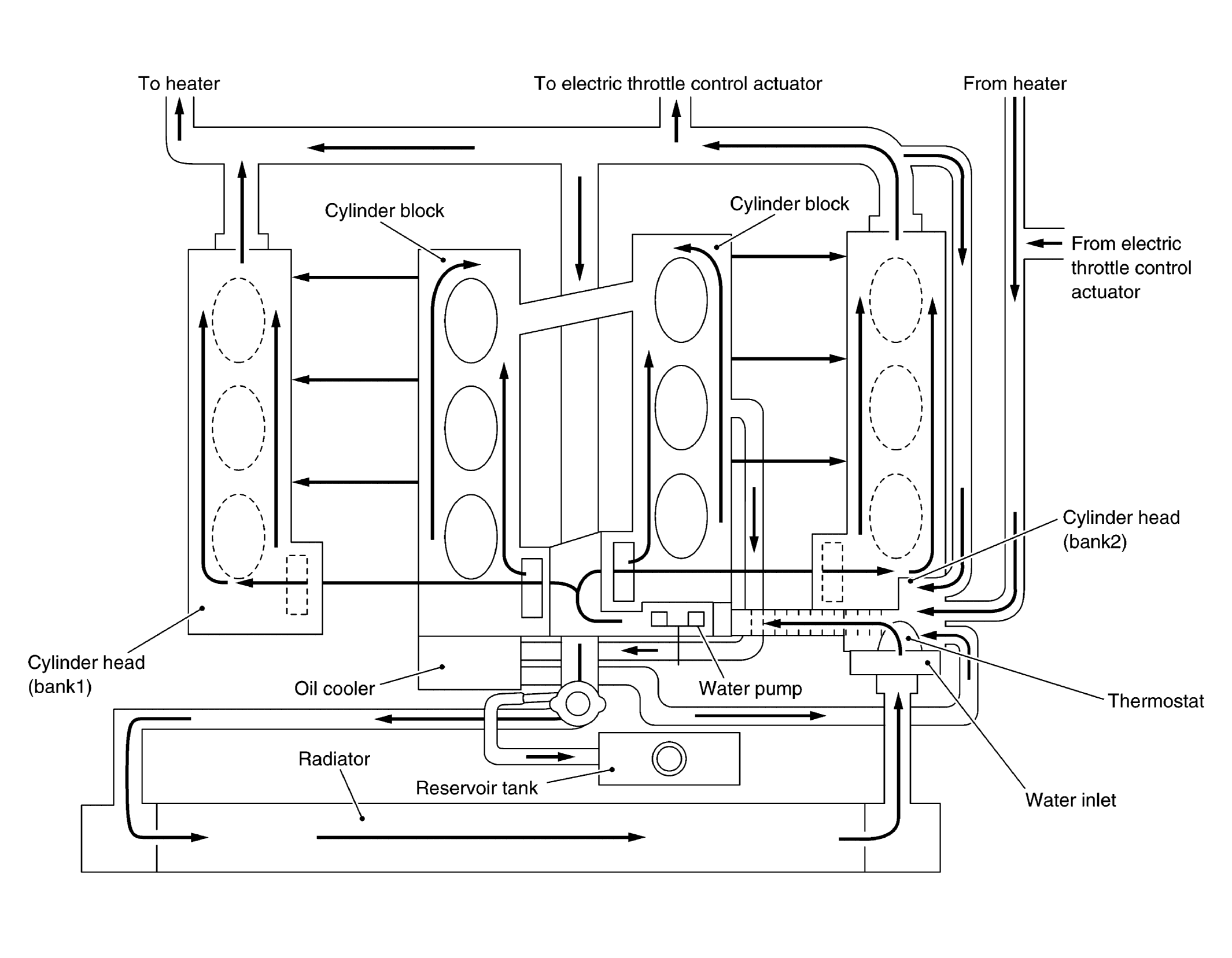

Fig 2: Engine Cooling System (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.
