Engine Lubrication System

WARNING: This page is about a different car, the 2013 Infiniti FX37. However, it is still accessible from the selected car via links, so may be relevant.

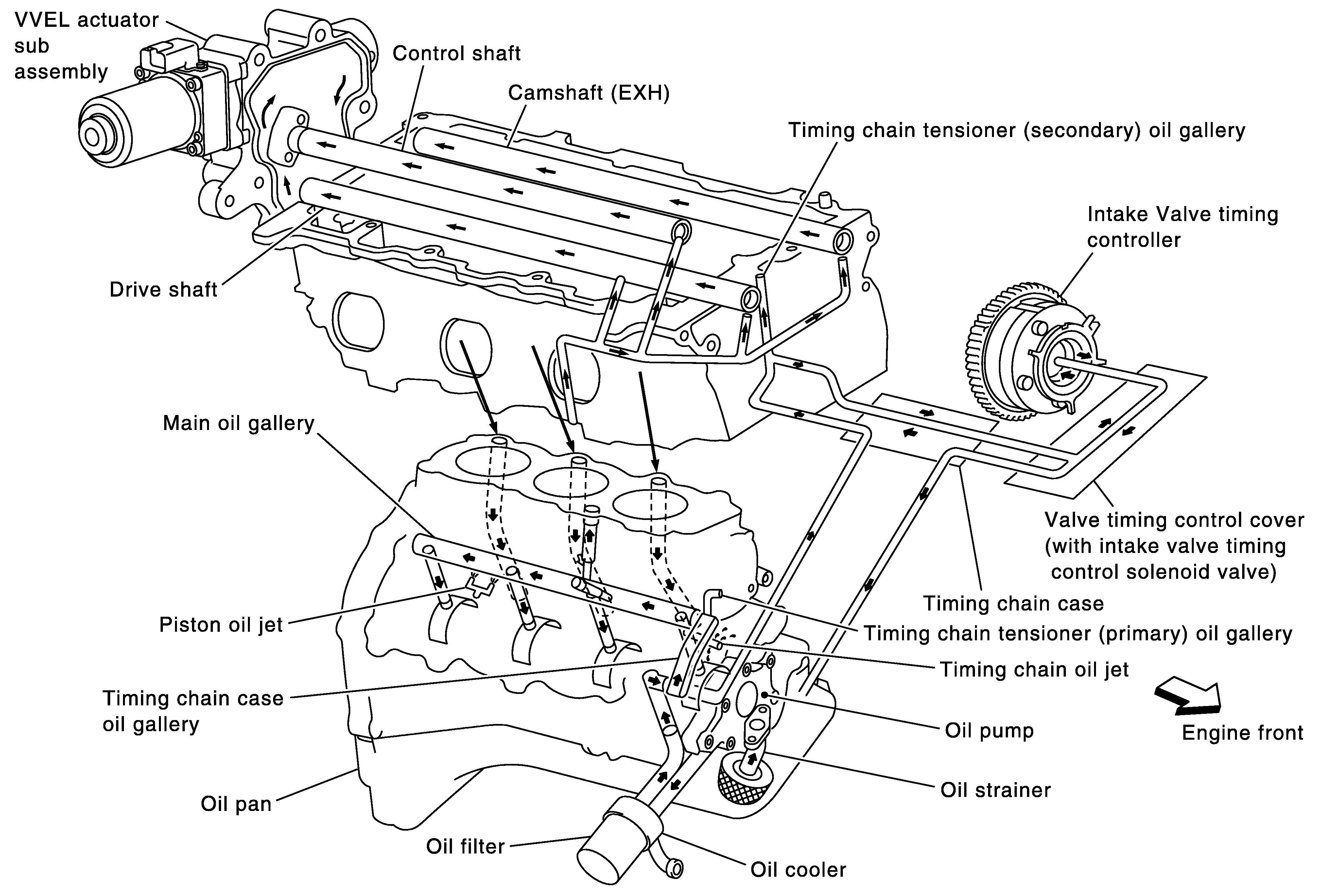

Fig 1: Engine Lubrication System Flow Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Without oil cooler for 2WD models
