Front Wheel Vertical G Sensor
›
Exploded View
Exploded View

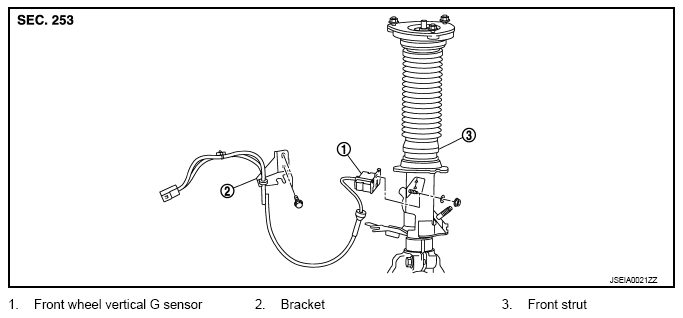

Fig 1: Identifying Front Wheel Vertical G Sensor, Bracket And Front Strut
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The above figure shows left side. Right side is the mirror image.
