System Description
›
A/T Control System
›
System Diagram
System Diagram

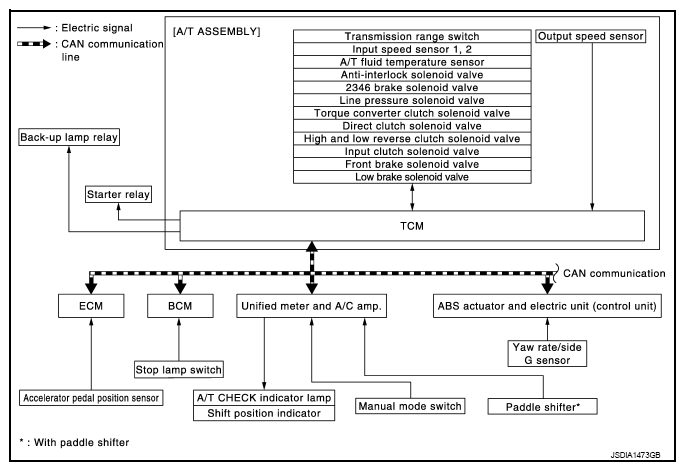

Fig 1: A/T Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
