System Description
›
Vehicle Security System
›
Component Parts Location
Component Parts Location

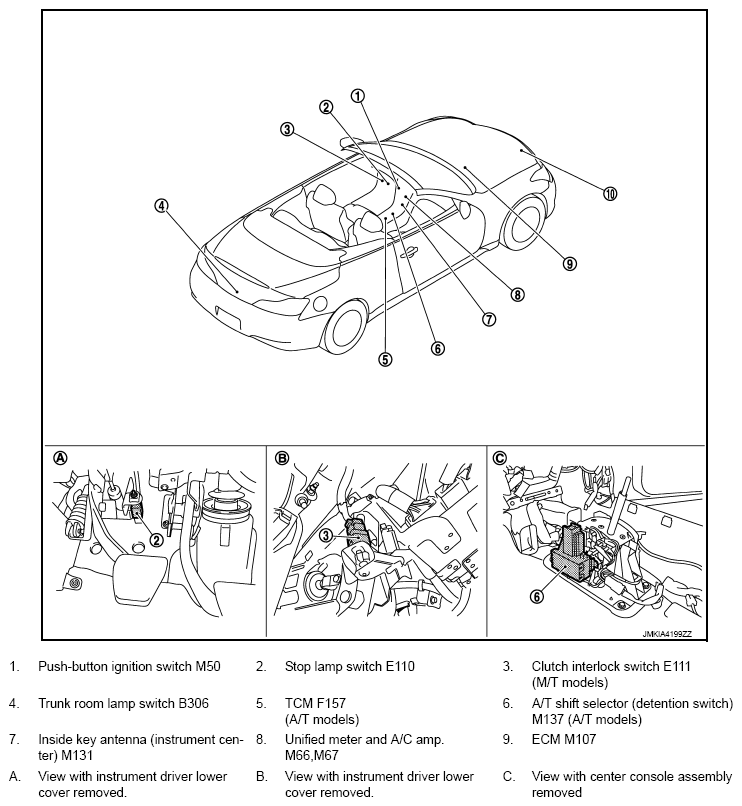

Fig 1: Identifying Vehicle Security System Components Location (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

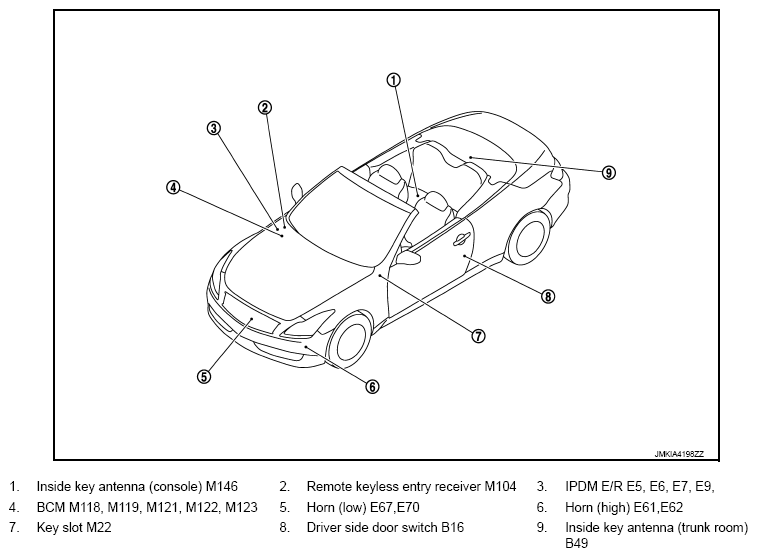

Fig 2: Identifying Vehicle Security System Components Location (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
