Exploded View

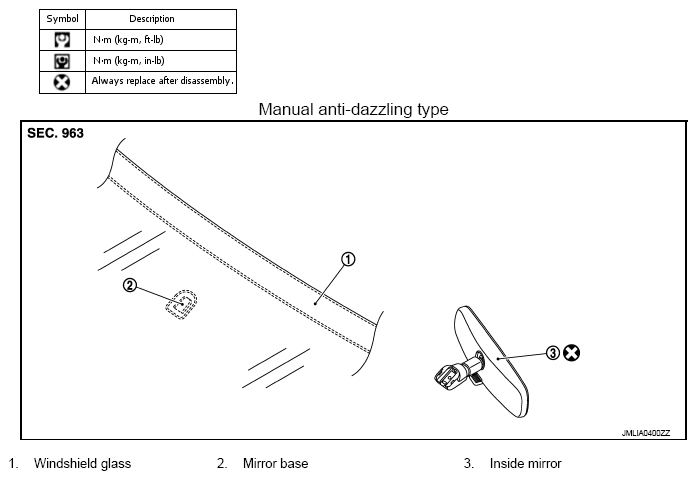

Fig 1: Exploded View Of Manual Anti-Dazzling Type Inside Mirror

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

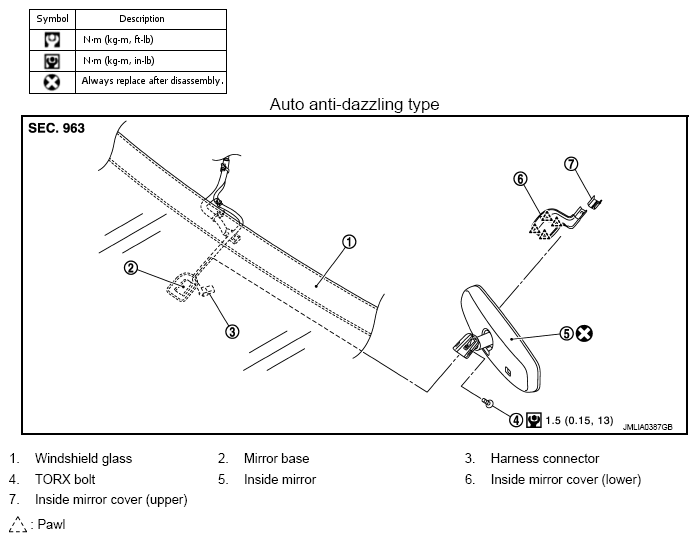

Fig 2: Exploded View Of Auto Anti-Dazzling Type Inside Mirror

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
