MEMORY FUNCTION: Component Parts Location

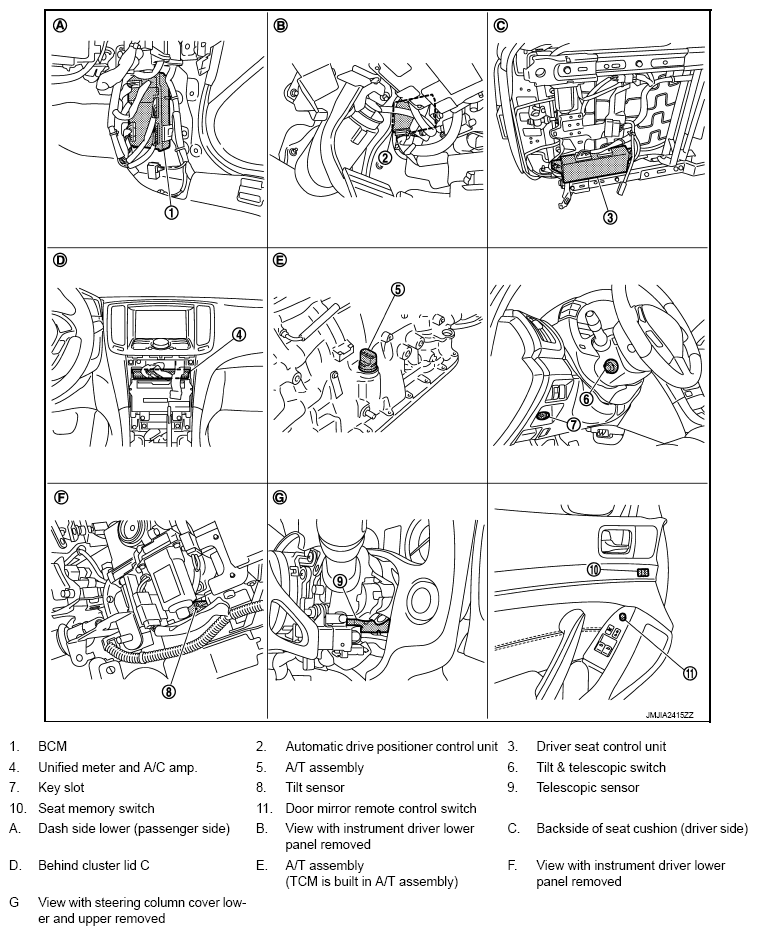

Fig 1: Memory Function System Component Parts Location (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

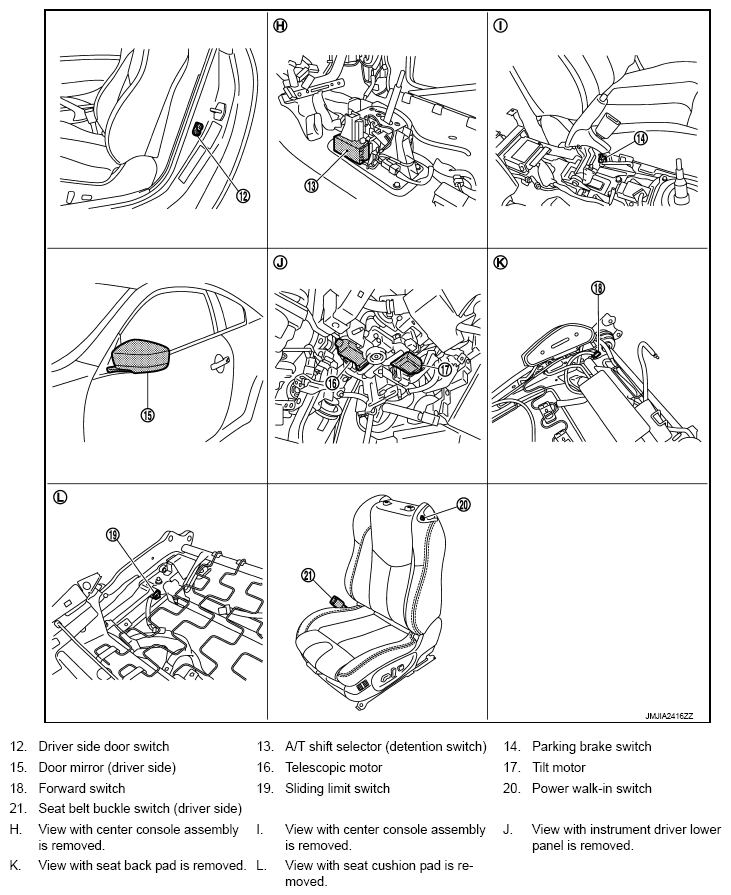

Fig 2: Memory Function System Component Parts Location (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

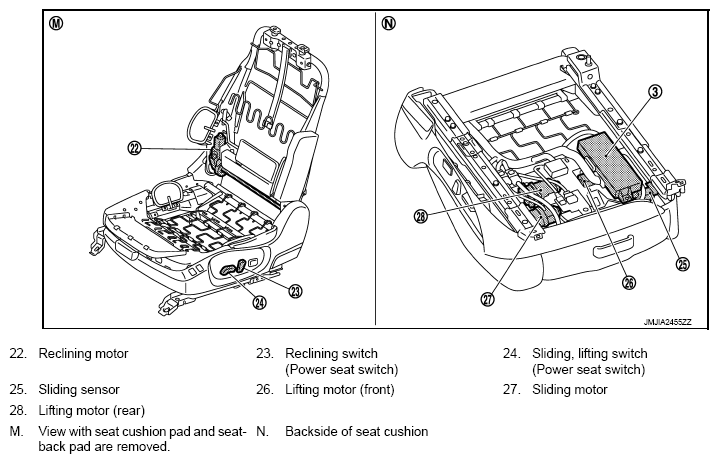

Fig 3: Memory Function System Component Parts Location (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
