Center Console Assembly
›
A/T Models
›
A/T MODELS: Exploded View
A/T MODELS: Exploded View

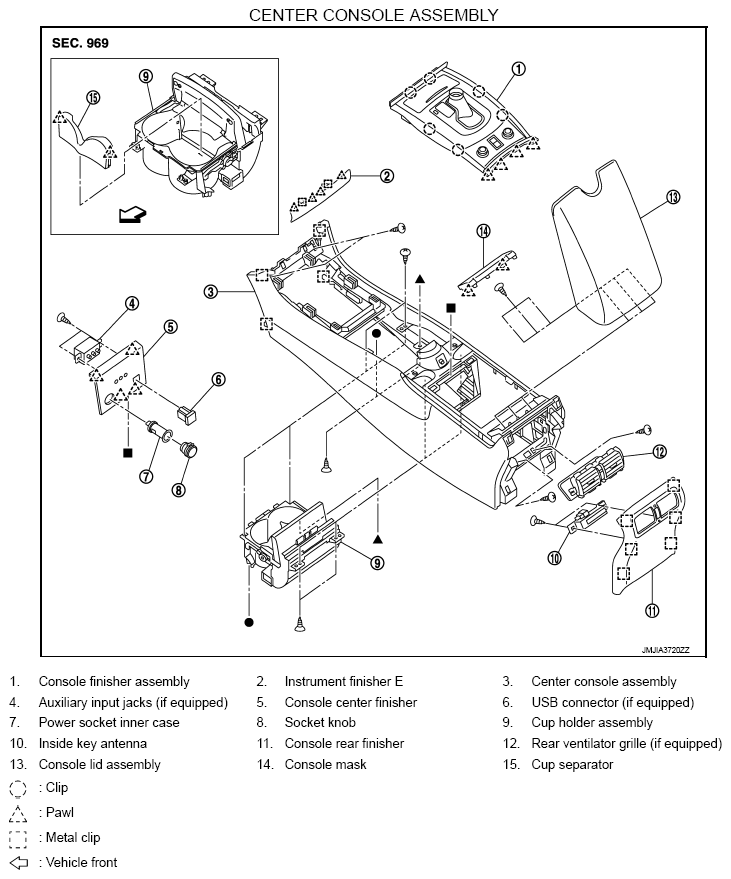

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.

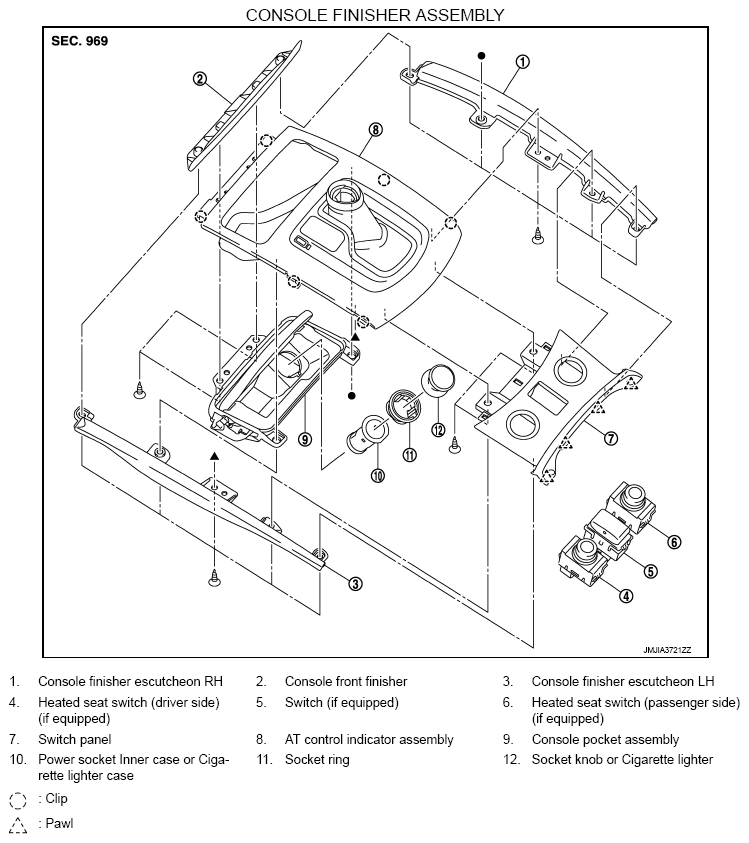

Fig 2: Exploded View Of Console Finisher Assembly (A/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
