M/T MODELS: Exploded View
M/T MODELS: Exploded View

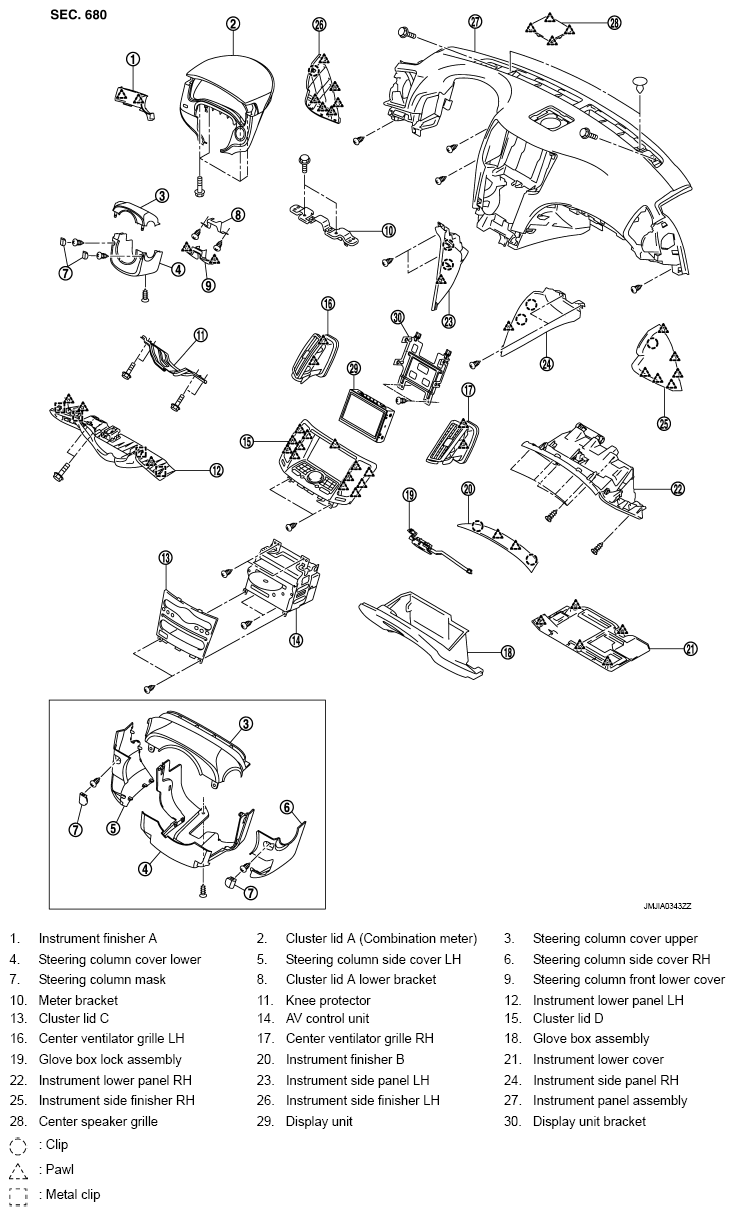

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
