Drive Belt
›
Exploded View
Exploded View

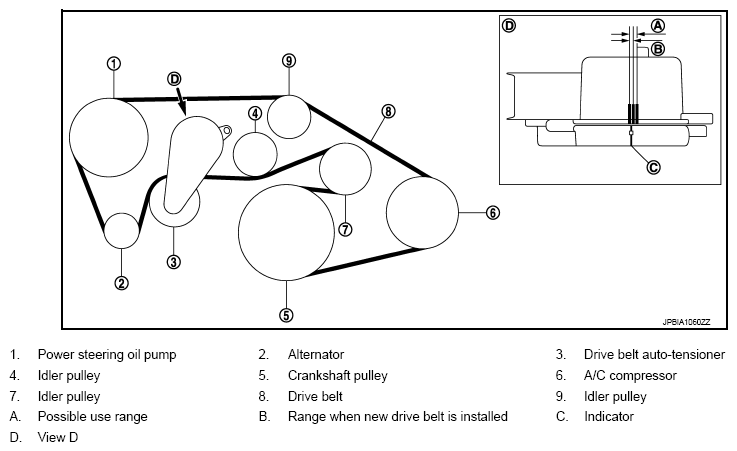

Fig 1: Drive Belt Routing Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
