Engine Control System (Introduction) (Convertible)
›
System Description
›
Automatic Speed Control Device (ASCD)
›
System Diagram
System Diagram

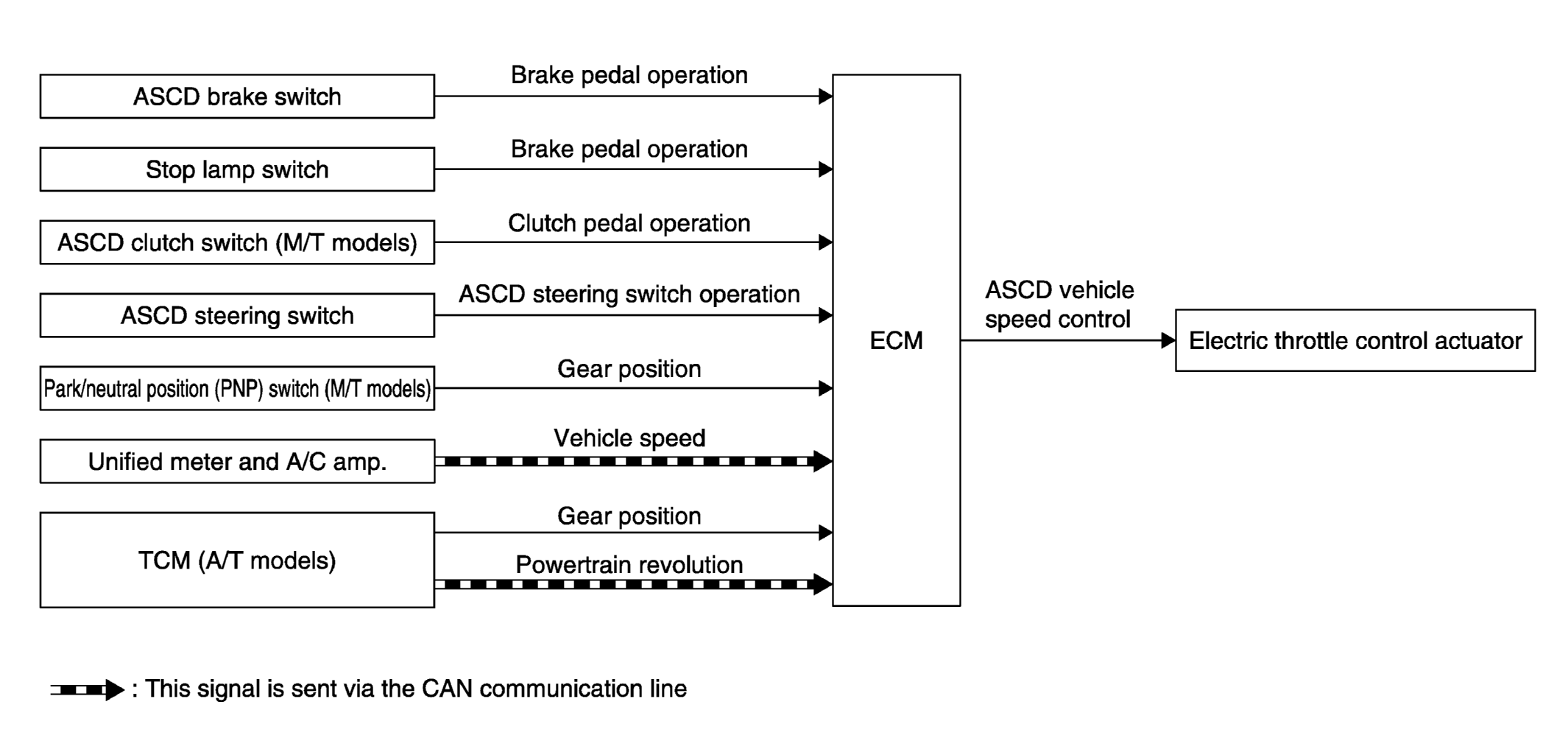

Fig 1: Automatic Speed Control Device System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
