Shift Fork And Fork Rod

WARNING: This page is about a different variant/trim than selected.

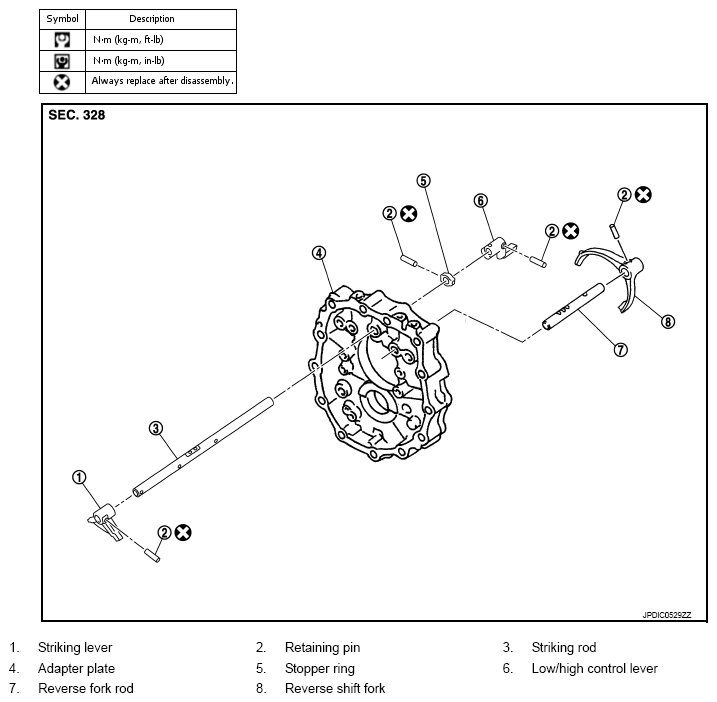

Fig 1: Exploded View Of Shift Fork And Fork Rod With Torque Specifications (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

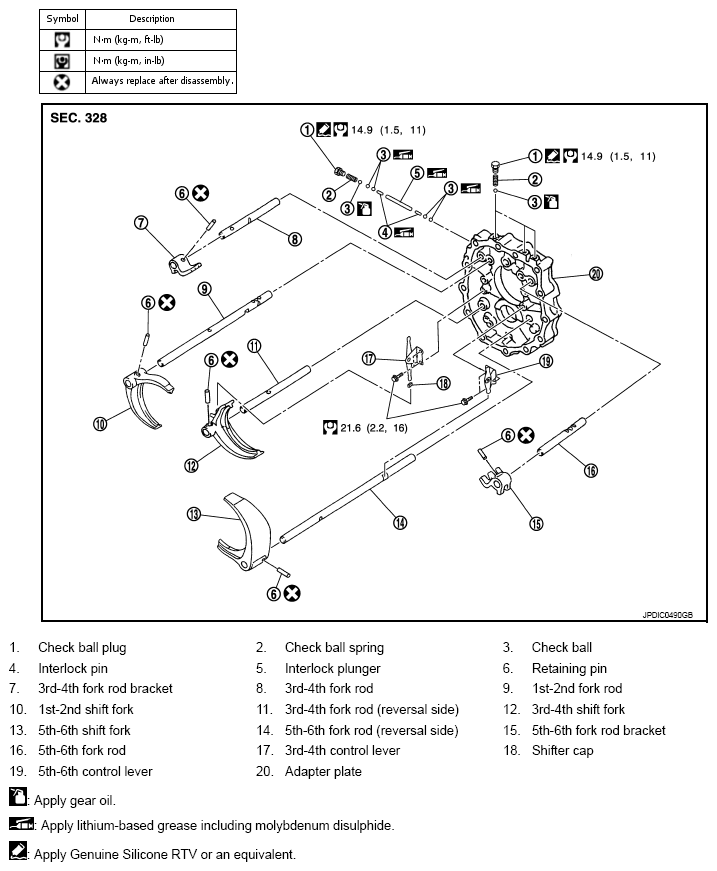

Fig 2: Exploded View Of Shift Fork And Fork Rod (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.

Fig 3: Exploded View Of Shift Fork And Fork Rod With Torque Specifications (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
