Section 16 (Engine Control System (Introduction) (Sedan) (MEXICO Only))
›
System Description
›
Cooling Fan Control
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

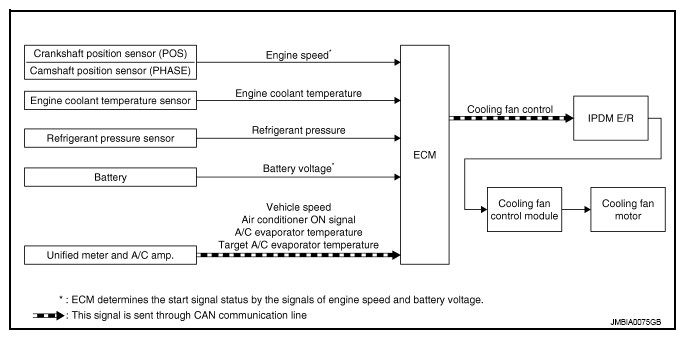

Fig 1: Cooling Fan Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
