Engine Lubrication System Schematic

WARNING: This page is about a different variant/trim than selected.

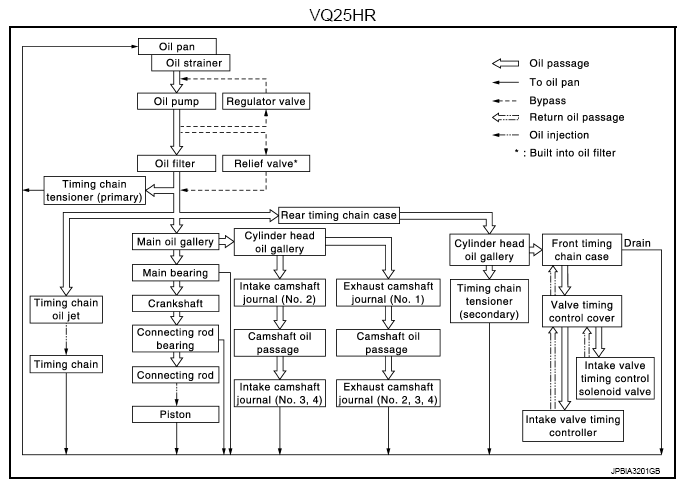

Fig 1: Engine Lubrication System Schematic (VQ25HR)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Engine Lubrication System Schematic (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.
