Exploded View

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exploded View Of Fuel Tank (For USA And Canada) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for to symbols in the figure.

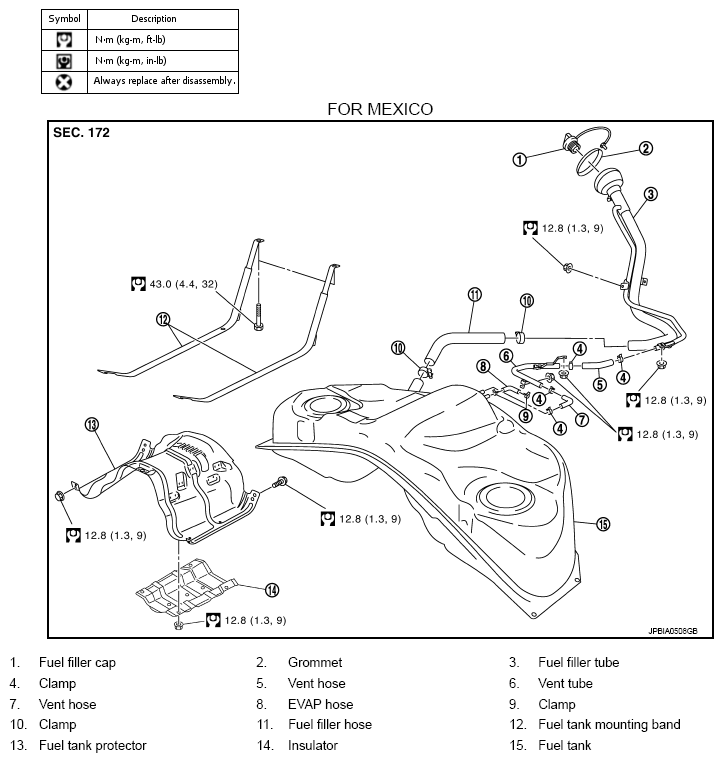

Fig 2: Exploded View Of Fuel Tank (For Mexico) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for to symbols in the figure.
