System Diagram

WARNING: This page is about a different variant/trim than selected.

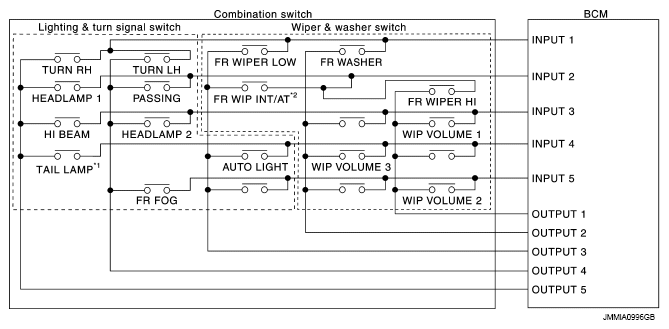

Fig 1: Combination Switch Reading System Diagram

G09014043

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

*1: TAIL LAMP switch links lighting switch 1ST position.
*2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
