Component Parts Location

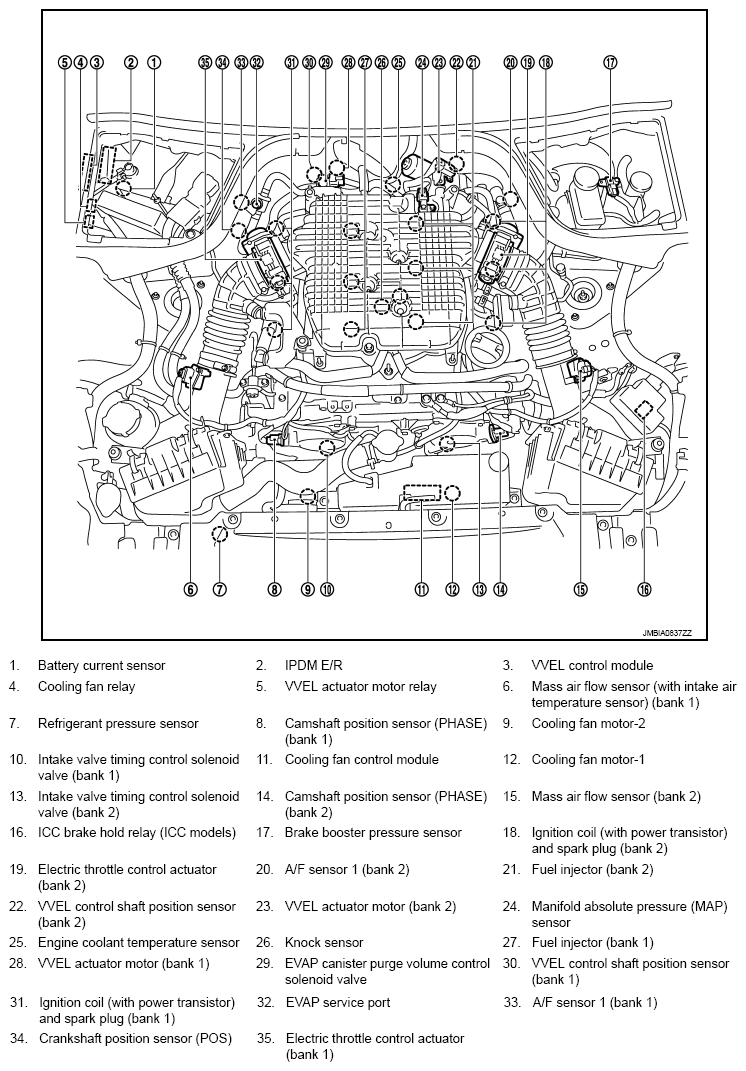

Fig 1: Identifying Air Conditioning Cut Control System Components Location (1 Of 22)

G08757606

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Air Conditioning Cut Control System Components Location (2 Of 22)

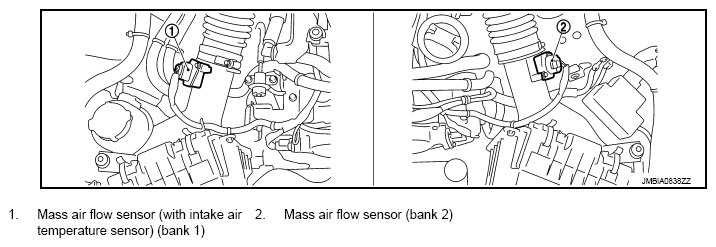

G08757607

Courtesy of NISSAN NORTH AMERICA, INC.

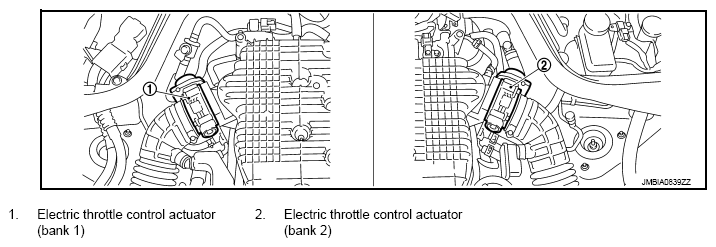

Fig 3: Identifying Air Conditioning Cut Control System Components Location (3 Of 22)

G08757608

Courtesy of NISSAN NORTH AMERICA, INC.

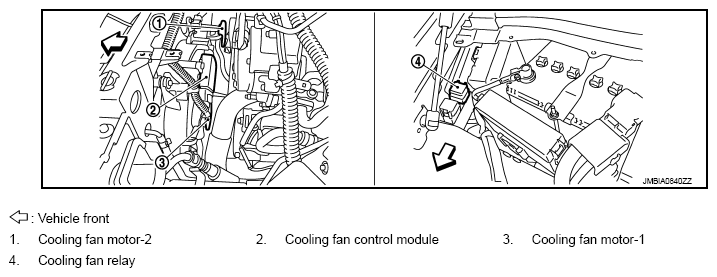

Fig 4: Identifying Air Conditioning Cut Control System Components Location (4 Of 22)

G08757609

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Air Conditioning Cut Control System Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Air Conditioning Cut Control System Components Location (6 Of 22)

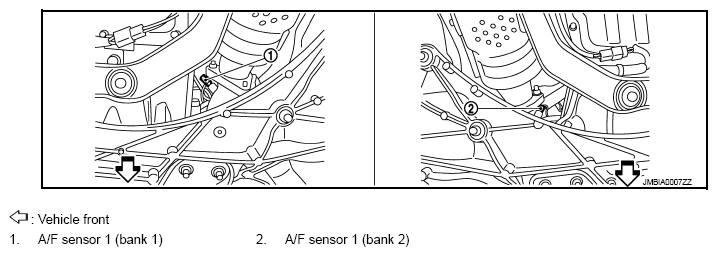

G08757611

Courtesy of NISSAN NORTH AMERICA, INC.

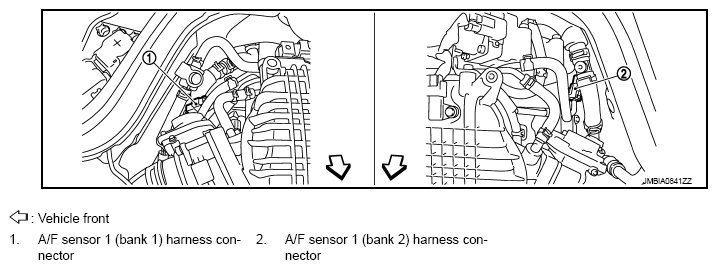

Fig 7: Identifying Air Conditioning Cut Control System Components Location (7 Of 22)

G08757612

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Air Conditioning Cut Control System Components Location (8 Of 22)

G08757613

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Air Conditioning Cut Control System Components Location (9 Of 22)

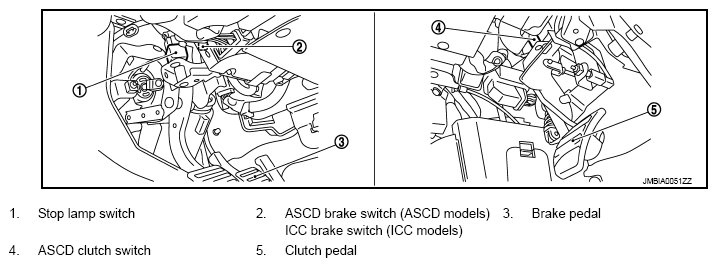

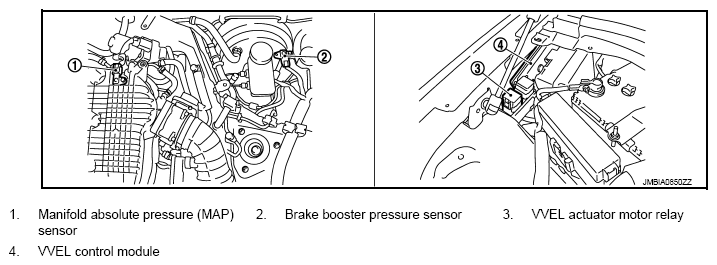

G08757614

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Air Conditioning Cut Control System Components Location (10 Of 22)

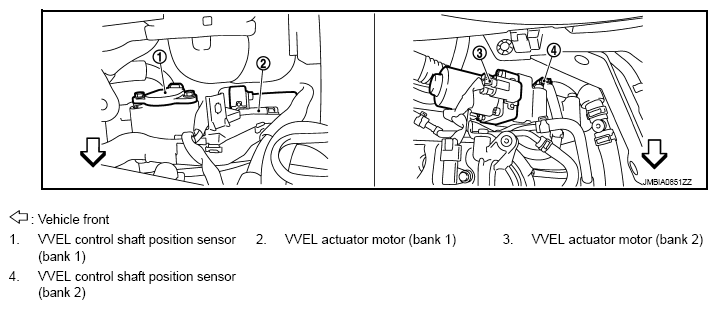

G08757615

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Air Conditioning Cut Control System Components Location (11 Of 22)

G08757616

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Air Conditioning Cut Control System Components Location (12 Of 22)

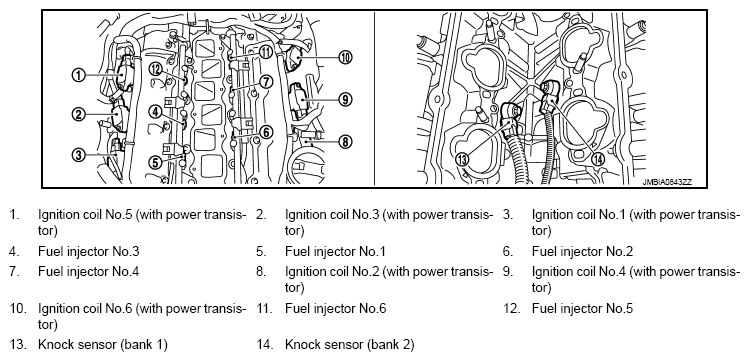

G08757617

Courtesy of NISSAN NORTH AMERICA, INC.

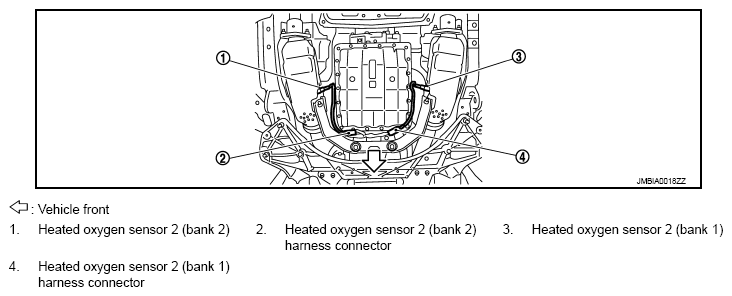

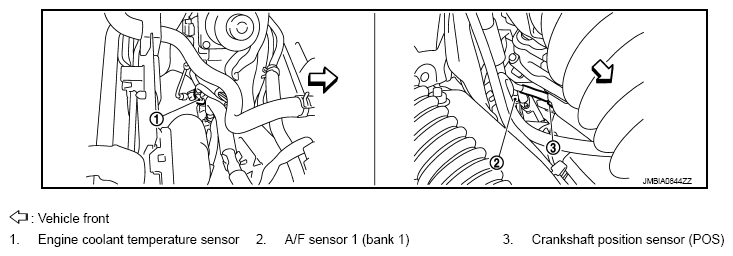

Fig 13: Identifying Air Conditioning Cut Control System Components Location (13 Of 22)

G08757618

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Air Conditioning Cut Control System Components Location (14 Of 22)

G08757619

Courtesy of NISSAN NORTH AMERICA, INC.

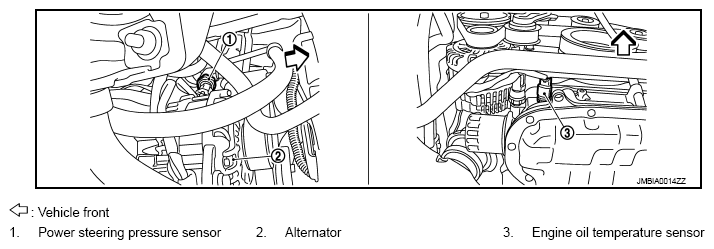

Fig 15: Identifying Air Conditioning Cut Control System Components Location (15 Of 22)

G08757620

Courtesy of NISSAN NORTH AMERICA, INC.

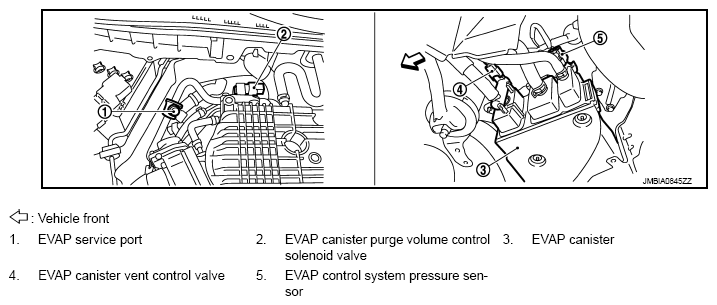

Fig 16: Identifying Air Conditioning Cut Control System Components Location (16 Of 22)

G08757621

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Air Conditioning Cut Control System Components Location (17 Of 22)

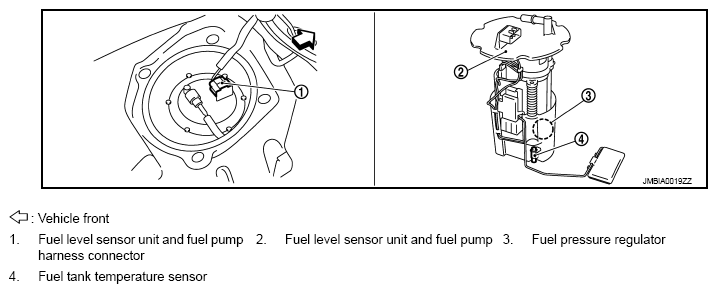

G08757622

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Air Conditioning Cut Control System Components Location (18 Of 22)

G08757623

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Air Conditioning Cut Control System Components Location (19 Of 22)

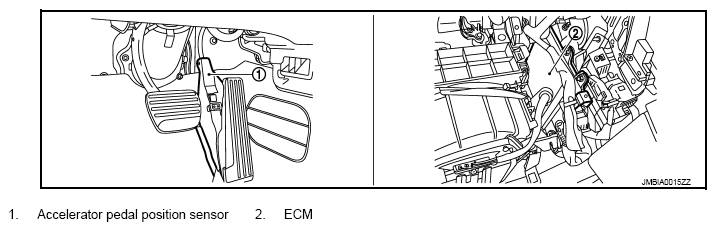

G08757624

Courtesy of NISSAN NORTH AMERICA, INC.

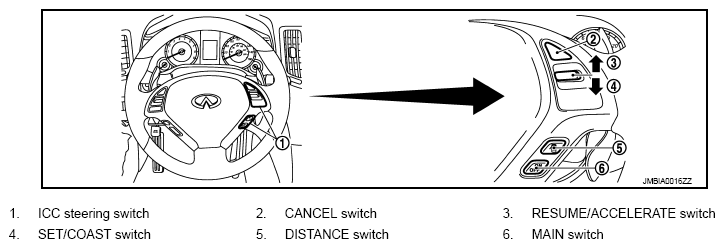

Fig 20: Identifying Air Conditioning Cut Control System Components Location (20 Of 22)

G08757625

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Air Conditioning Cut Control System Components Location (21 Of 22)

G08757626

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Identifying Air Conditioning Cut Control System Components Location (22 Of 22)

G08757627

Courtesy of NISSAN NORTH AMERICA, INC.
