Component Parts Location

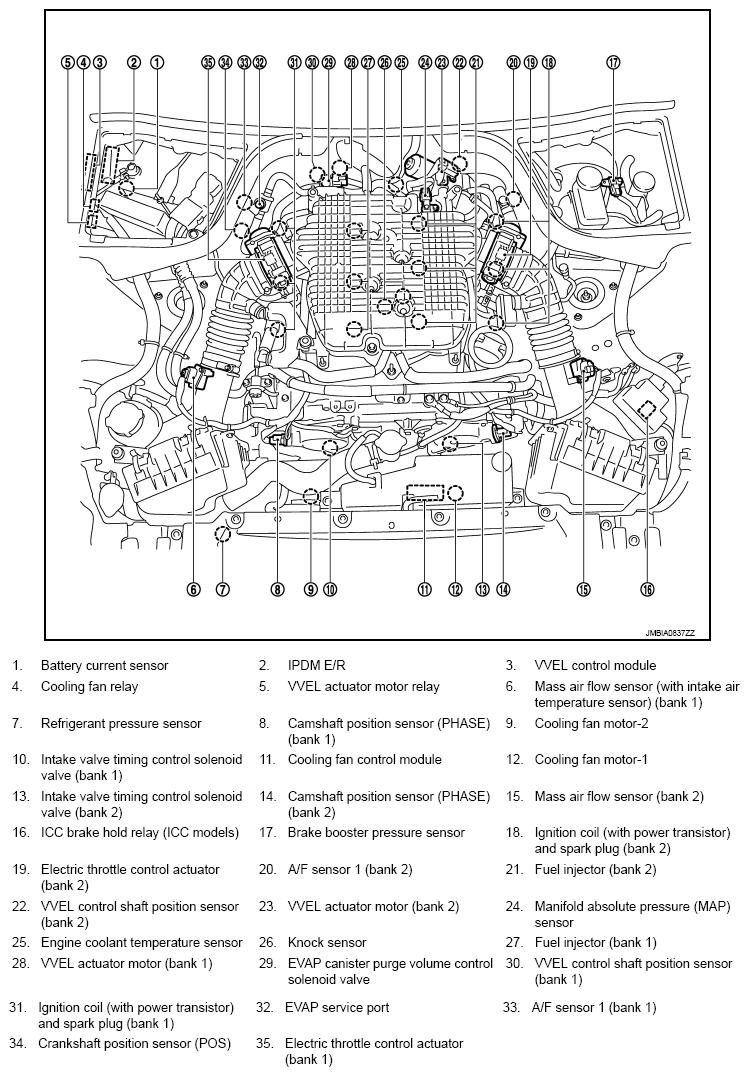

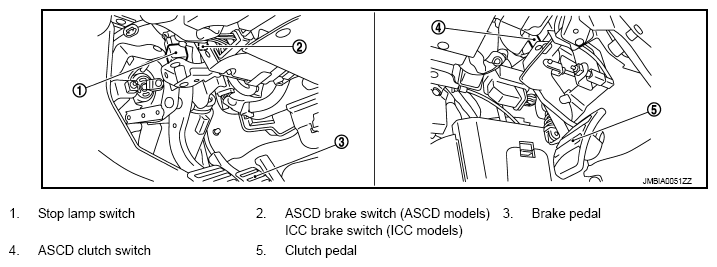

Fig 1: Identifying Cooling Fan Control System Components Location (1 Of 22)

G08757652

Courtesy of NISSAN NORTH AMERICA, INC.

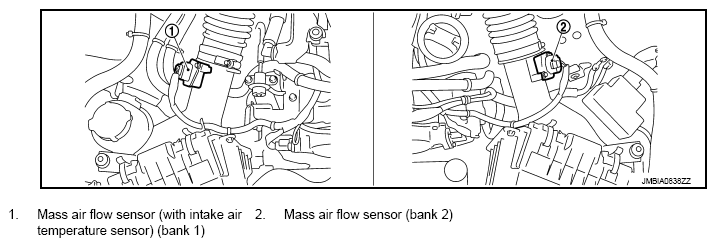

Fig 2: Identifying Cooling Fan Control System Components Location (2 Of 22)

G08757653

Courtesy of NISSAN NORTH AMERICA, INC.

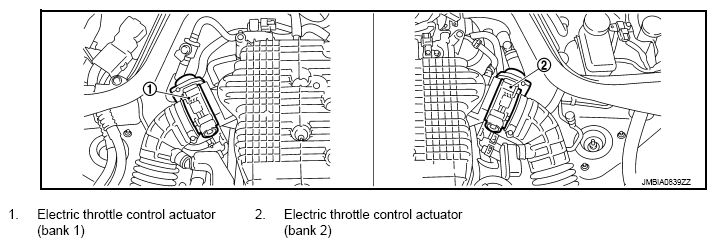

Fig 3: Identifying Cooling Fan Control System Components Location (3 Of 22)

G08757654

Courtesy of NISSAN NORTH AMERICA, INC.

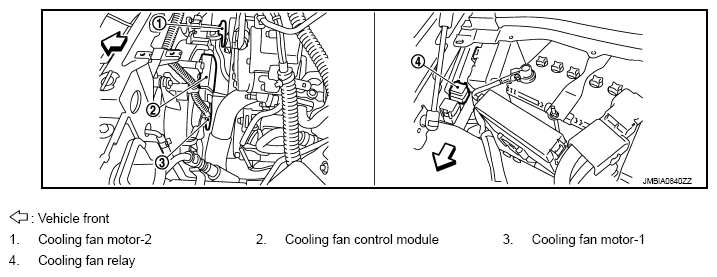

Fig 4: Identifying Cooling Fan Control System Components Location (4 Of 22)

G08757655

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Cooling Fan Control System Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

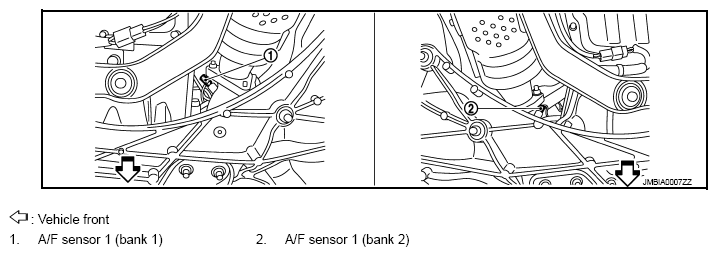

Fig 6: Identifying Cooling Fan Control System Components Location (6 Of 22)

G08757657

Courtesy of NISSAN NORTH AMERICA, INC.

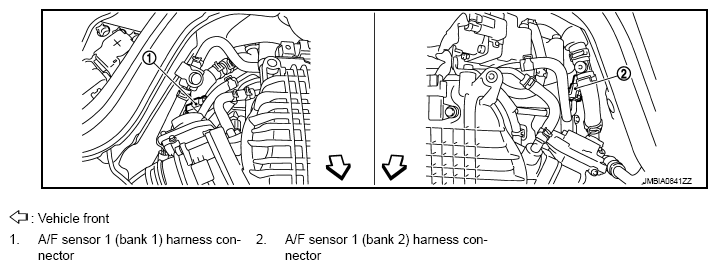

Fig 7: Identifying Cooling Fan Control System Components Location (7 Of 22)

G08757658

Courtesy of NISSAN NORTH AMERICA, INC.

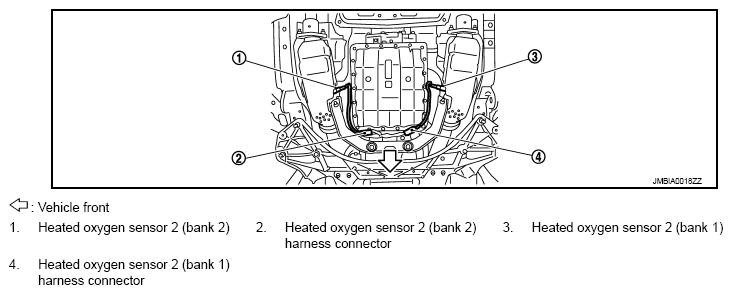

Fig 8: Identifying Cooling Fan Control System Components Location (8 Of 22)

G08757659

Courtesy of NISSAN NORTH AMERICA, INC.

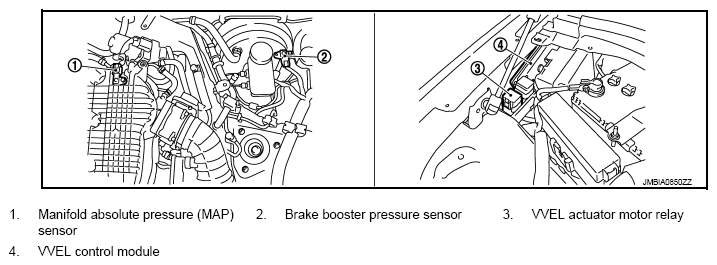

Fig 9: Identifying Cooling Fan Control System Components Location (9 Of 22)

G08757660

Courtesy of NISSAN NORTH AMERICA, INC.

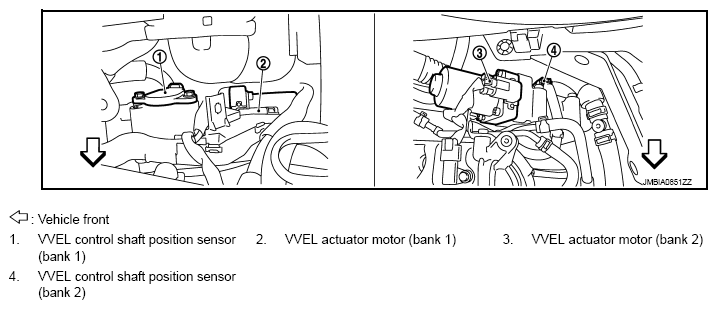

Fig 10: Identifying Cooling Fan Control System Components Location (10 Of 22)

G08757661

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Cooling Fan Control System Components Location (11 Of 22)

G08757662

Courtesy of NISSAN NORTH AMERICA, INC.

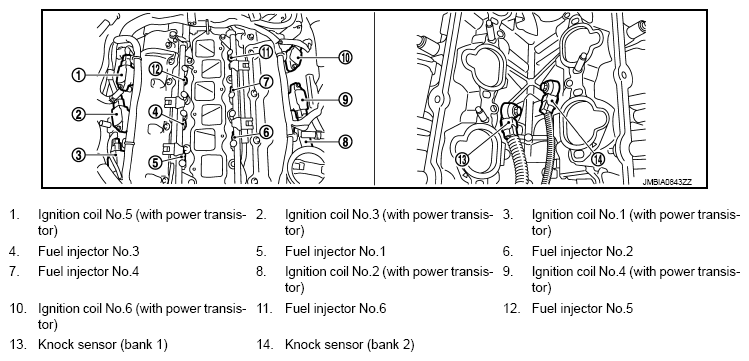

Fig 12: Identifying Cooling Fan Control System Components Location (12 Of 22)

G08757663

Courtesy of NISSAN NORTH AMERICA, INC.

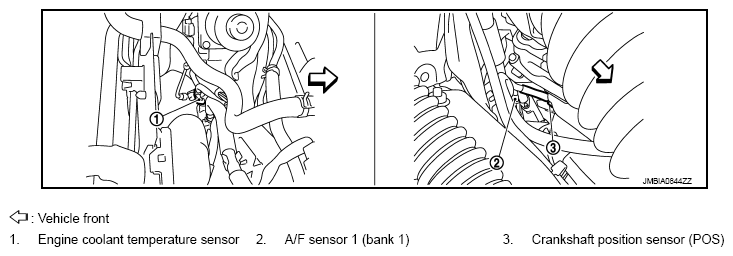

Fig 13: Identifying Cooling Fan Control System Components Location (13 Of 22)

G08757664

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Cooling Fan Control System Components Location (14 Of 22)

G08757665

Courtesy of NISSAN NORTH AMERICA, INC.

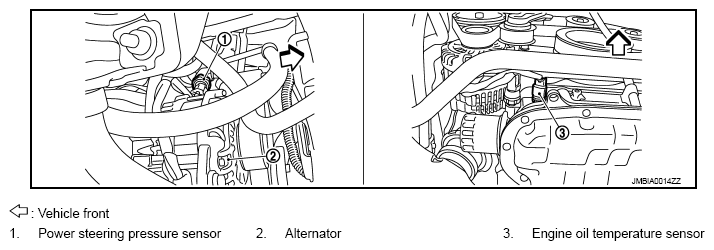

Fig 15: Identifying Cooling Fan Control System Components Location (15 Of 22)

G08757666

Courtesy of NISSAN NORTH AMERICA, INC.

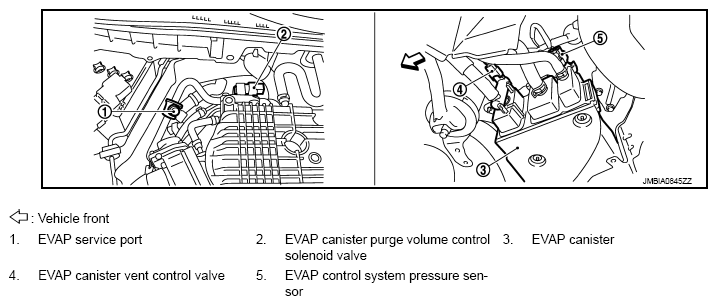

Fig 16: Identifying Cooling Fan Control System Components Location (16 Of 22)

G08757667

Courtesy of NISSAN NORTH AMERICA, INC.

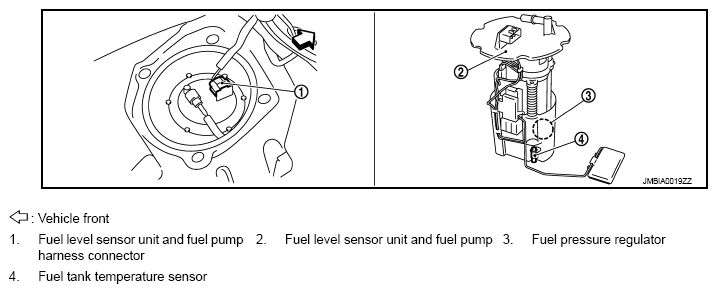

Fig 17: Identifying Cooling Fan Control System Components Location (17 Of 22)

G08757668

Courtesy of NISSAN NORTH AMERICA, INC.

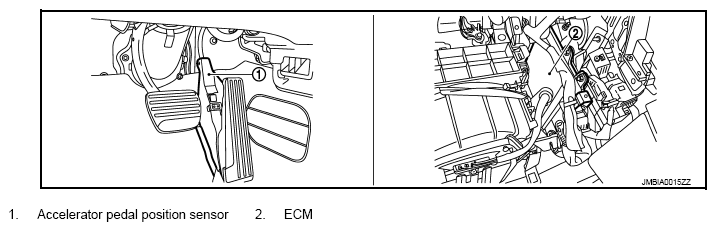

Fig 18: Identifying Cooling Fan Control System Components Location (18 Of 22)

G08757669

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Cooling Fan Control System Components Location (19 Of 22)

G08757670

Courtesy of NISSAN NORTH AMERICA, INC.

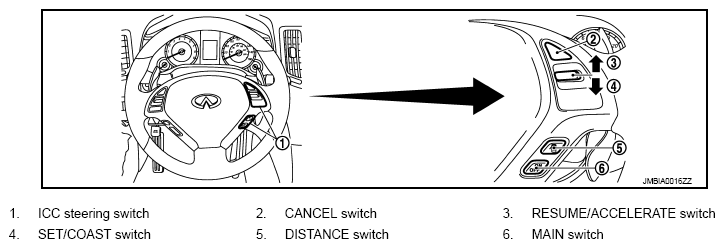

Fig 20: Identifying Cooling Fan Control System Components Location (20 Of 22)

G08757671

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Cooling Fan Control System Components Location (21 Of 22)

G08757672

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Identifying Cooling Fan Control System Components Location (22 Of 22)

G08757673

Courtesy of NISSAN NORTH AMERICA, INC.
