Component Parts Location

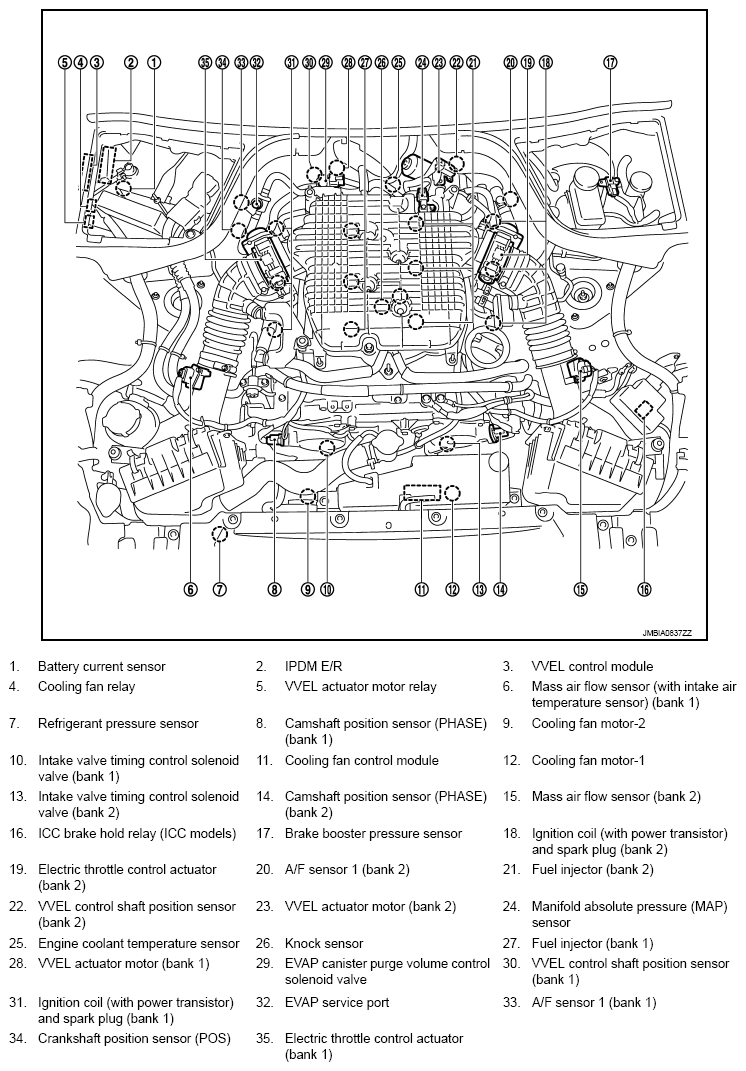

Fig 1: Identifying Electric Ignition System Components Location (1 Of 22)

G08757583

Courtesy of NISSAN NORTH AMERICA, INC.

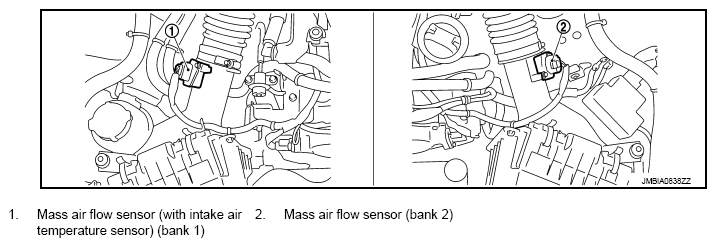

Fig 2: Identifying Electric Ignition System Components Location (2 Of 22)

G08757584

Courtesy of NISSAN NORTH AMERICA, INC.

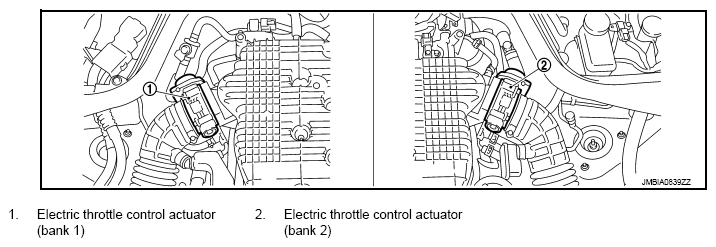

Fig 3: Identifying Electric Ignition System Components Location (3 Of 22)

G08757585

Courtesy of NISSAN NORTH AMERICA, INC.

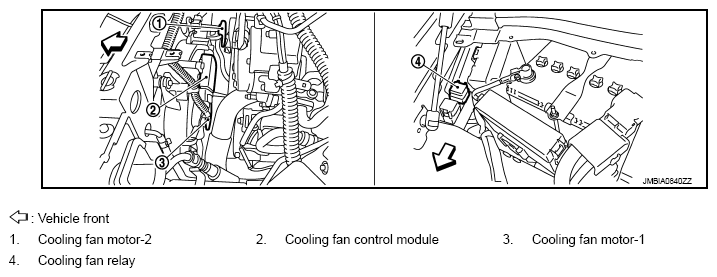

Fig 4: Identifying Electric Ignition System Components Location (4 Of 22)

G08757586

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Electric Ignition System Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

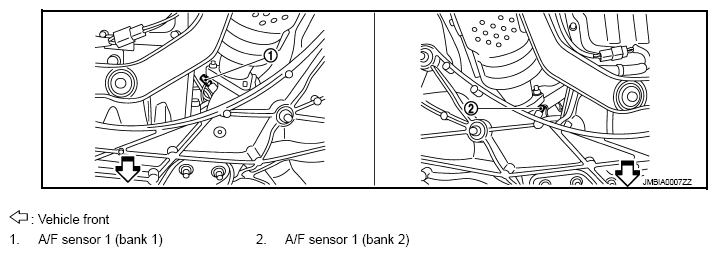

Fig 6: Identifying Electric Ignition System Components Location (6 Of 22)

G08757588

Courtesy of NISSAN NORTH AMERICA, INC.

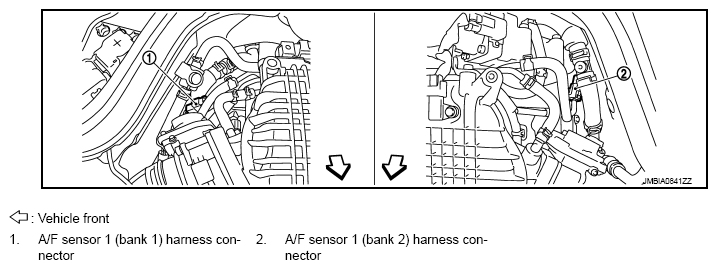

Fig 7: Identifying Electric Ignition System Components Location (7 Of 22)

G08757589

Courtesy of NISSAN NORTH AMERICA, INC.

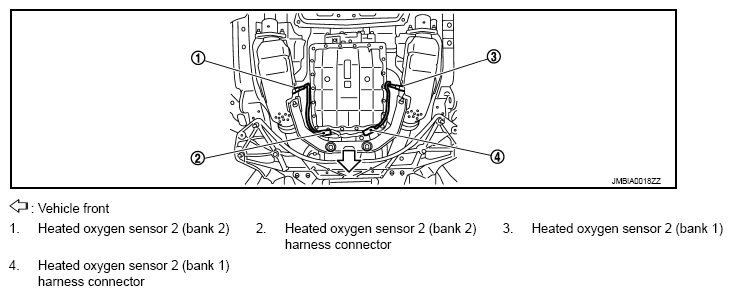

Fig 8: Identifying Electric Ignition System Components Location (8 Of 22)

G08757590

Courtesy of NISSAN NORTH AMERICA, INC.

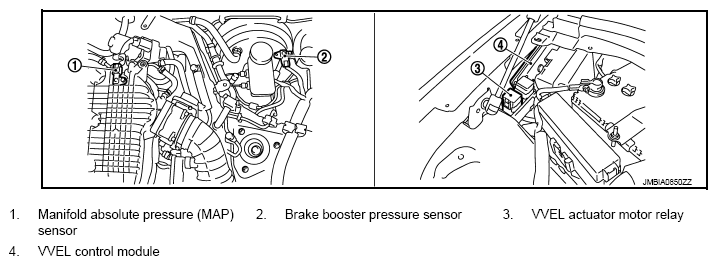

Fig 9: Identifying Electric Ignition System Components Location (9 Of 22)

G08757591

Courtesy of NISSAN NORTH AMERICA, INC.

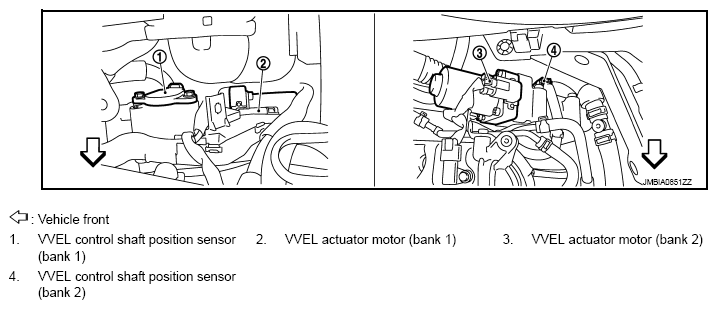

Fig 10: Identifying Electric Ignition System Components Location (10 Of 22)

G08757592

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Electric Ignition System Components Location (11 Of 22)

G08757593

Courtesy of NISSAN NORTH AMERICA, INC.

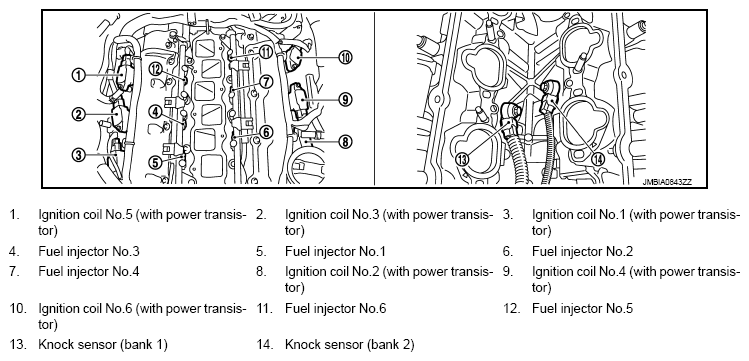

Fig 12: Identifying Electric Ignition System Components Location (12 Of 22)

G08757594

Courtesy of NISSAN NORTH AMERICA, INC.

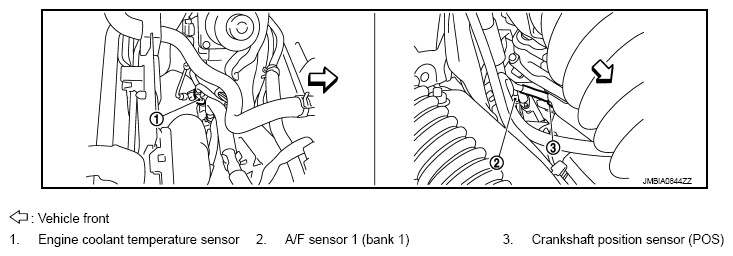

Fig 13: Identifying Electric Ignition System Components Location (13 Of 22)

G08757595

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Electric Ignition System Components Location (14 Of 22)

G08757596

Courtesy of NISSAN NORTH AMERICA, INC.

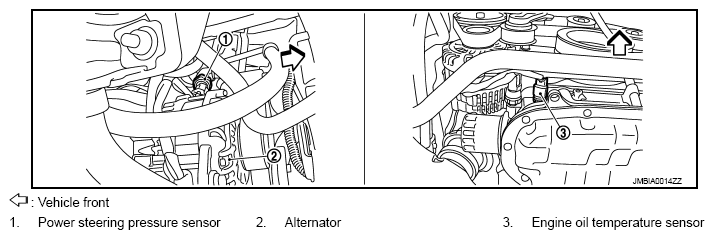

Fig 15: Identifying Electric Ignition System Components Location (15 Of 22)

G08757597

Courtesy of NISSAN NORTH AMERICA, INC.

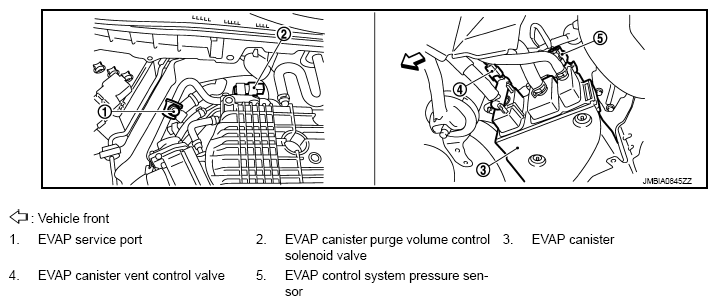

Fig 16: Identifying Electric Ignition System Components Location (16 Of 22)

G08757598

Courtesy of NISSAN NORTH AMERICA, INC.

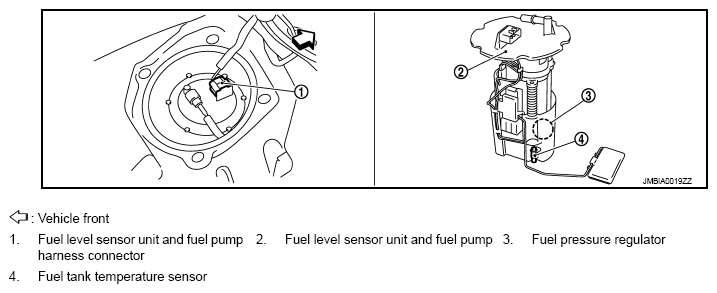

Fig 17: Identifying Electric Ignition System Components Location (17 Of 22)

G08757599

Courtesy of NISSAN NORTH AMERICA, INC.

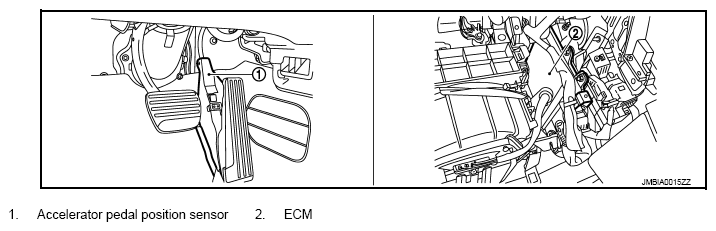

Fig 18: Identifying Electric Ignition System Components Location (18 Of 22)

G08757600

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Electric Ignition System Components Location (19 Of 22)

G08757601

Courtesy of NISSAN NORTH AMERICA, INC.

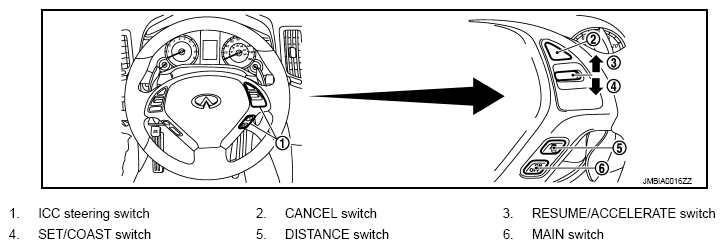

Fig 20: Identifying Electric Ignition System Components Location (20 Of 22)

G08757602

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Electric Ignition System Components Location (21 Of 22)

G08757603

Courtesy of NISSAN NORTH AMERICA, INC.

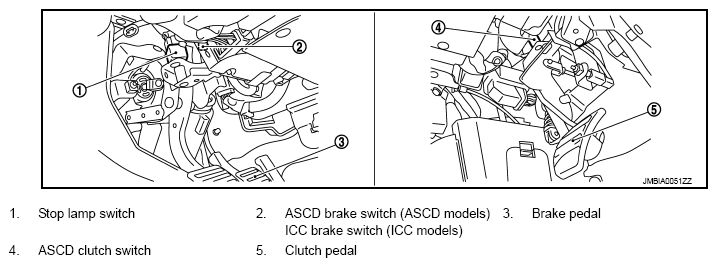

Fig 22: Identifying Electric Ignition System Components Location (22 Of 22)

G08757604

Courtesy of NISSAN NORTH AMERICA, INC.
