Component Parts Location

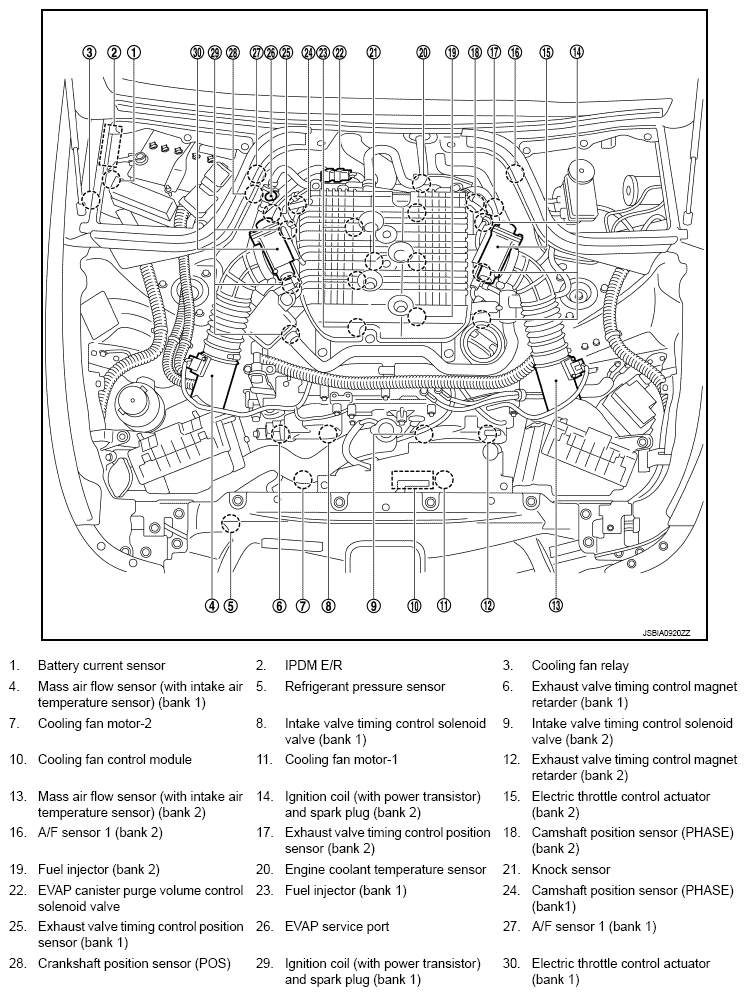

Fig 1: Air Conditioning Cut Control Components Parts Location (1 Of 19)
G09009844Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Air Conditioning Cut Control Components Parts Location (2 Of 19)
G09009845Courtesy of NISSAN NORTH AMERICA, INC.

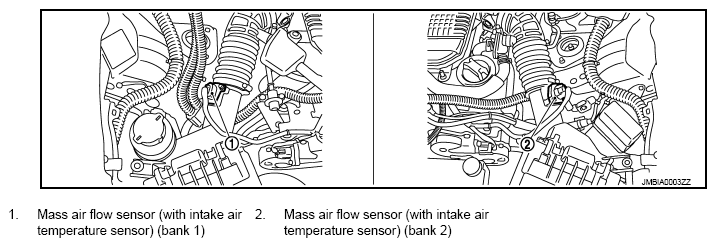

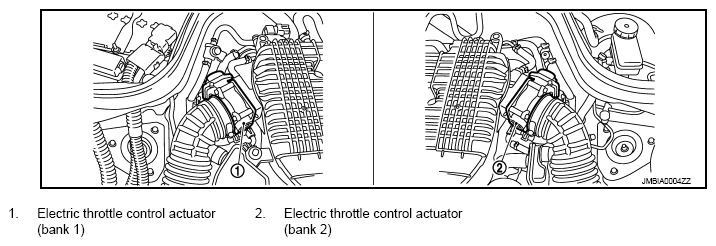

Fig 3: Air Conditioning Cut Control Components Parts Location (3 Of 19)
G09009846Courtesy of NISSAN NORTH AMERICA, INC.

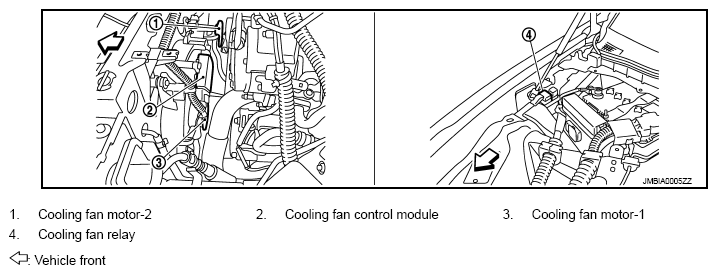

Fig 4: Air Conditioning Cut Control Components Parts Location (4 Of 19)
G09009847Courtesy of NISSAN NORTH AMERICA, INC.

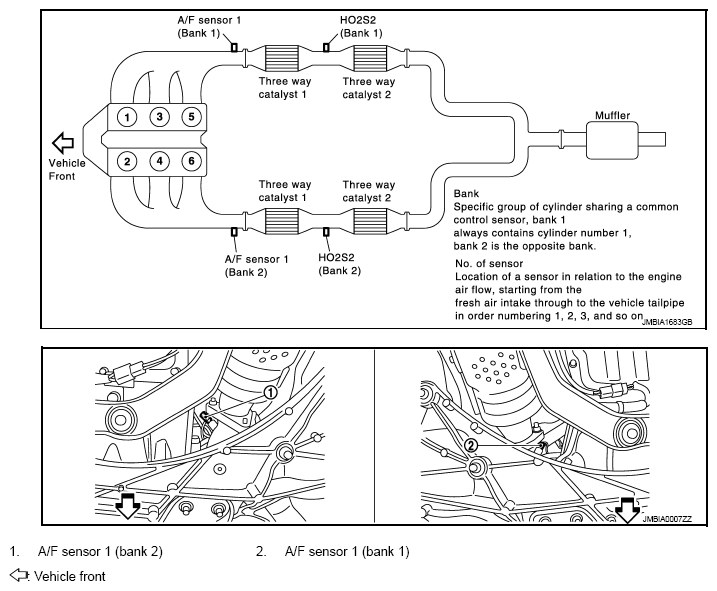

Fig 5: Air Conditioning Cut Control Components Parts Location (5 Of 19)
G09009848Courtesy of NISSAN NORTH AMERICA, INC.

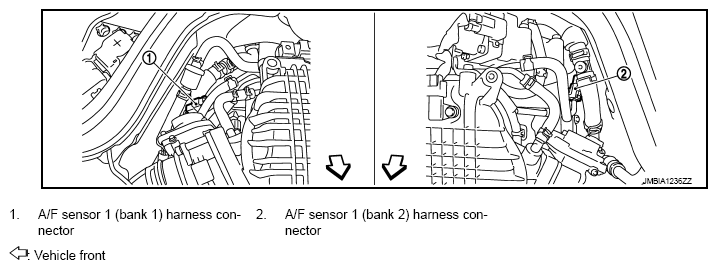

Fig 6: Air Conditioning Cut Control Components Parts Location (6 Of 19)
G09009849Courtesy of NISSAN NORTH AMERICA, INC.

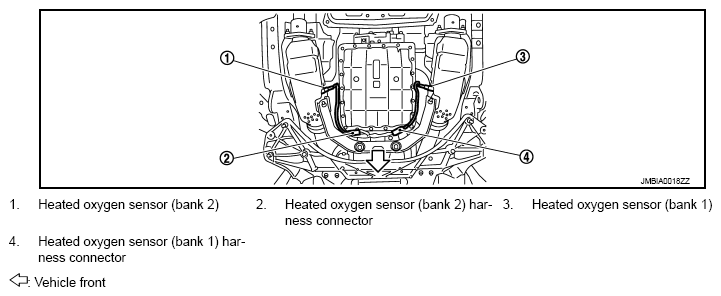

Fig 7: Air Conditioning Cut Control Components Parts Location (7 Of 19)
G09009850Courtesy of NISSAN NORTH AMERICA, INC.

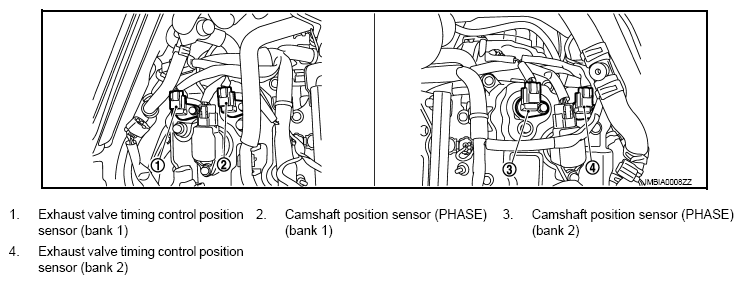

Fig 8: Air Conditioning Cut Control Components Parts Location (8 Of 19)
G09009851Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Air Conditioning Cut Control Components Parts Location (9 Of 19)
G09009852Courtesy of NISSAN NORTH AMERICA, INC.

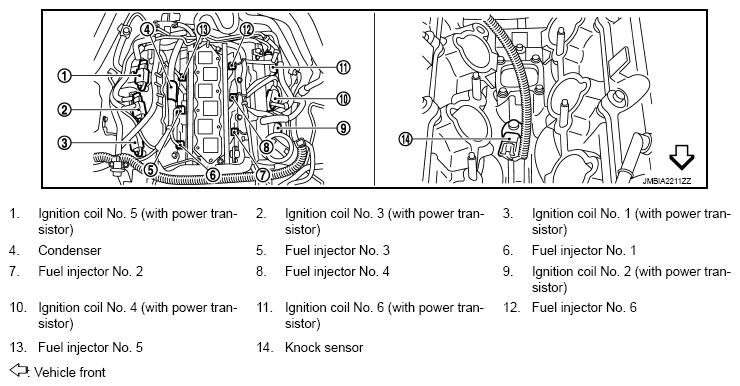

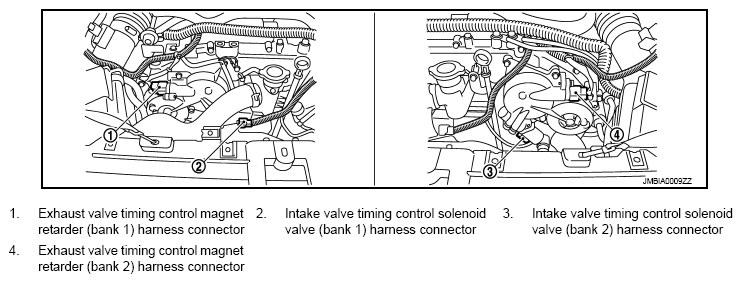

Fig 10: Air Conditioning Cut Control Components Parts Location (10 Of 19)
G09009853Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Air Conditioning Cut Control Components Parts Location (11 Of 19)
G09009854Courtesy of NISSAN NORTH AMERICA, INC.

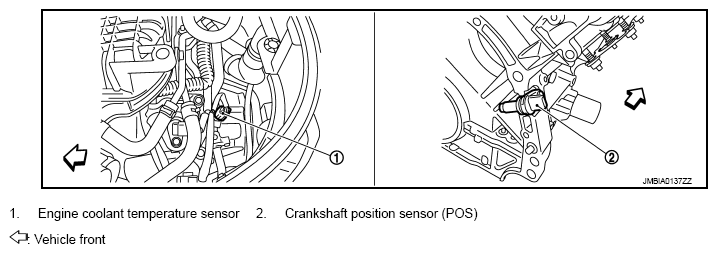

Fig 12: Air Conditioning Cut Control Components Parts Location (12 Of 19)
G09009855Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Air Conditioning Cut Control Components Parts Location (13 Of 19)
G09009856Courtesy of NISSAN NORTH AMERICA, INC.

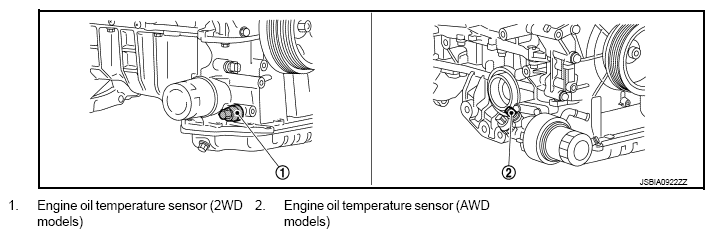

Fig 14: Air Conditioning Cut Control Components Parts Location (14 Of 19)
G09009857Courtesy of NISSAN NORTH AMERICA, INC.
Fig 15: Air Conditioning Cut Control Components Parts Location (15 Of 19)
G09009858Courtesy of NISSAN NORTH AMERICA, INC.

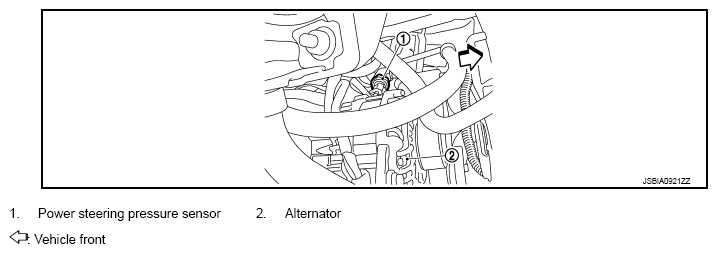

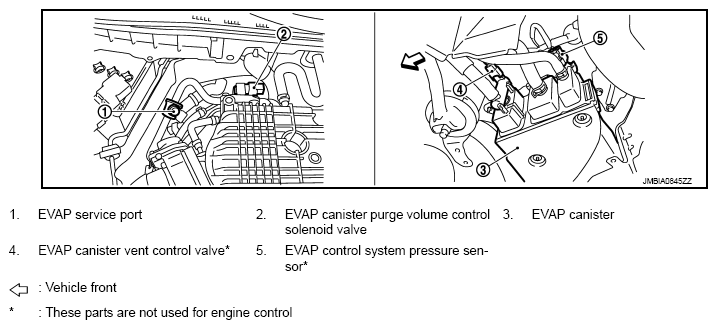

Fig 16: Air Conditioning Cut Control Components Parts Location (16 Of 19)
G09009859Courtesy of NISSAN NORTH AMERICA, INC.
Fig 17: Air Conditioning Cut Control Components Parts Location (17 Of 19)
G09009860Courtesy of NISSAN NORTH AMERICA, INC.

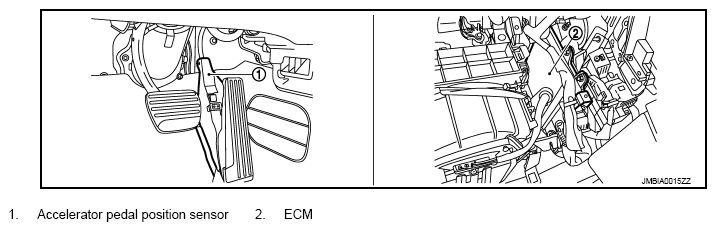

Fig 18: Air Conditioning Cut Control Components Parts Location (18 Of 19)
G09009861Courtesy of NISSAN NORTH AMERICA, INC.

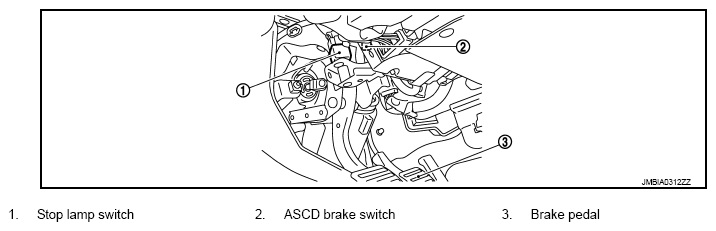

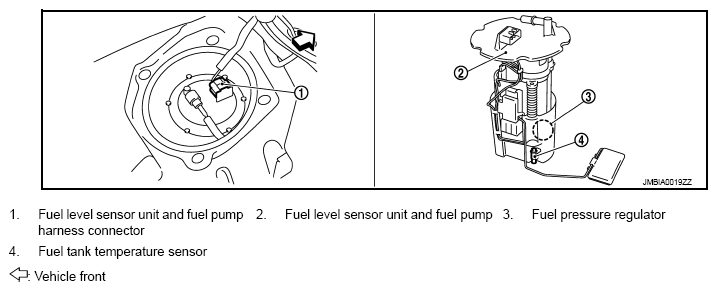

Fig 19: Air Conditioning Cut Control Components Parts Location (19 Of 19)
G09009862Courtesy of NISSAN NORTH AMERICA, INC.
