Removal and Installation: Removal

  1. Remove front door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the harness connector from the power window and door lock/unlock switch RH (1).
  3. Remove two screws (A) and the power window and door lock/unlock switch RH (1) and finisher as an assembly.

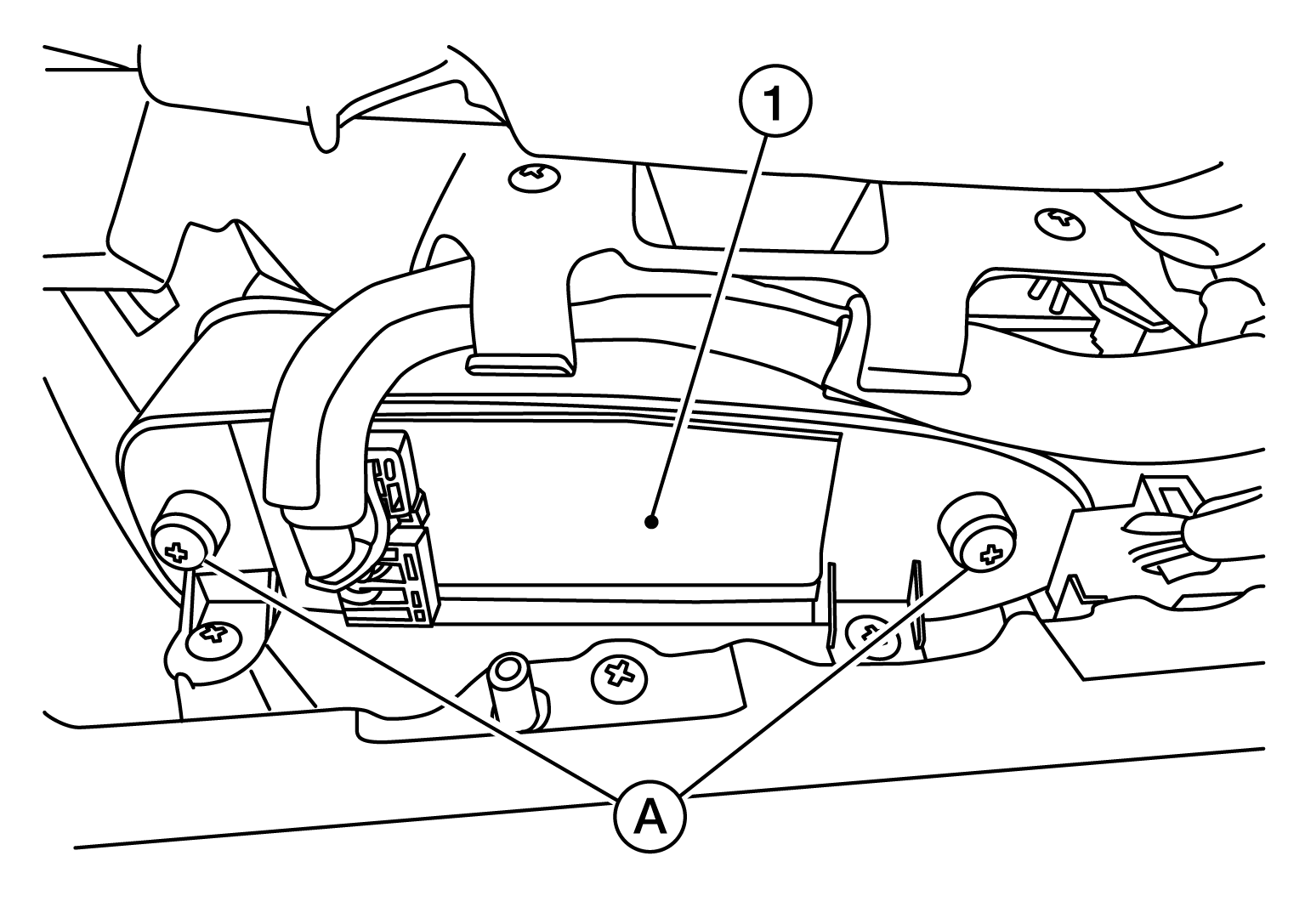

    Fig 1: Locating Power Window And Door Lock/Unlock Switch RH And Screws
    G08852142Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release four pawls then separate power window and door lock/unlock switch RH (1) from switch finisher (2).
    Fig 2: Removing Power Window And Door Lock/Unlock Switch RH From Switch Finisher
    G08852143Courtesy of NISSAN NORTH AMERICA, INC.
