Removal and Installation: Removal

  1. Remove the rear door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove screws and the rear door armrest.
  3. Disconnect the harness connector from the rear power window switch (1).
  4. Remove two screws (A) and the rear power window switch (1) and finisher (2) as an assembly.

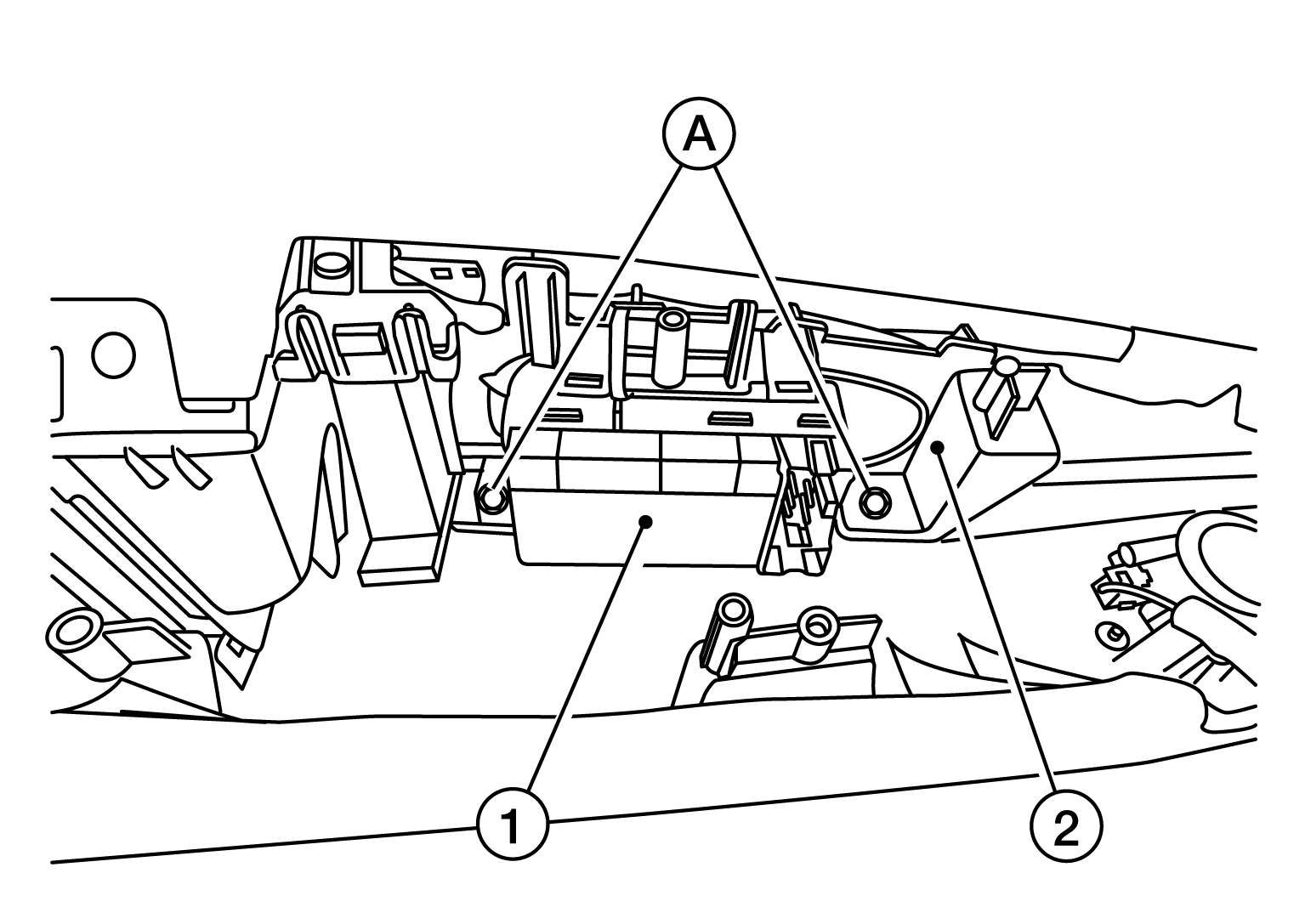

    Fig 1: Locating Rear Power Window Switch, Finisher And Screws
    G08852144Courtesy of NISSAN NORTH AMERICA, INC.
  5. Release four pawls then separate rear power window switch (1) from switch finisher.
    Fig 2: Removing Rear Power Window Switch From Switch Finisher
    G08852145Courtesy of NISSAN NORTH AMERICA, INC.
