Exploded View - Rear Wheel Sensor

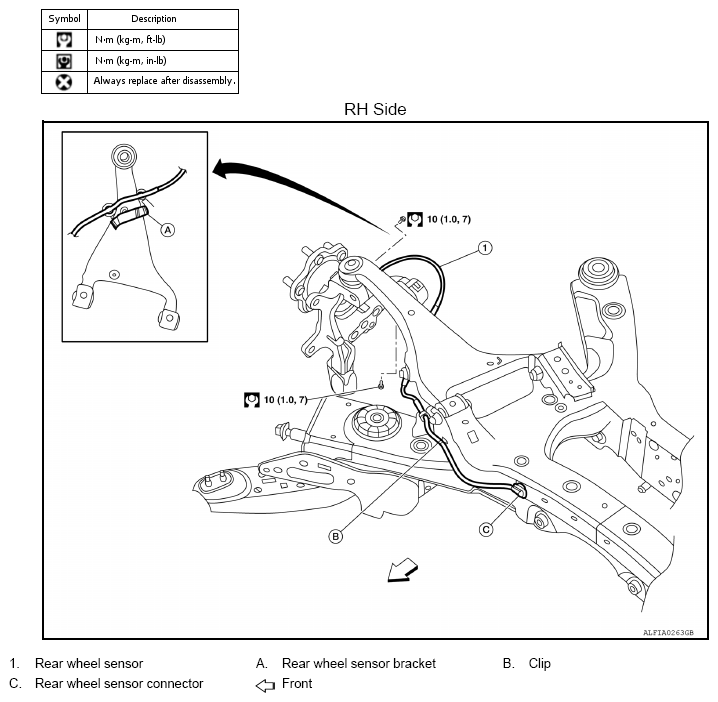

Fig 1: Exploded View Of Rear Wheel Sensor With Torque Specifications (RH Side)

Courtesy of NISSAN NORTH AMERICA, INC.

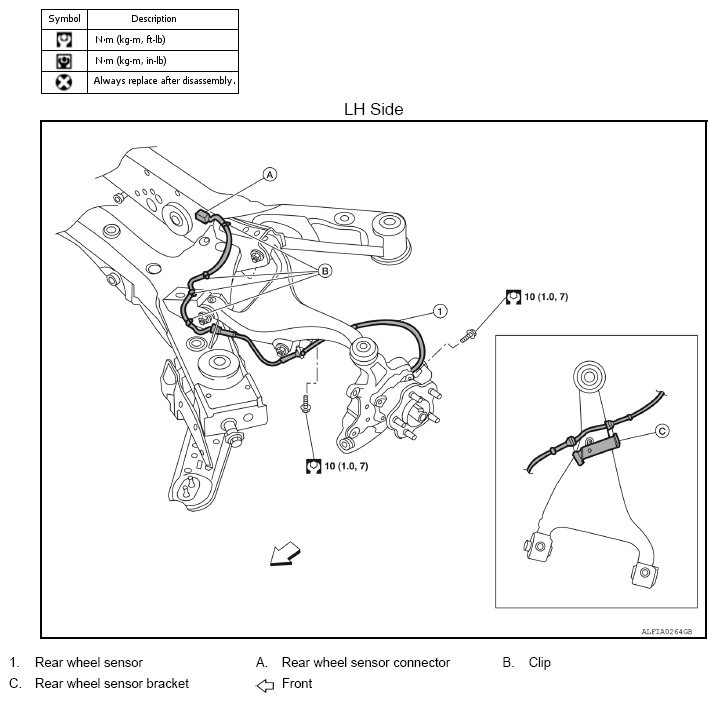

Fig 2: Exploded View Of Rear Wheel Sensor With Torque Specifications (LH Side)

Courtesy of NISSAN NORTH AMERICA, INC.
