Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Release the pawls (A) and separate the IPDM E/R (1) from the case.

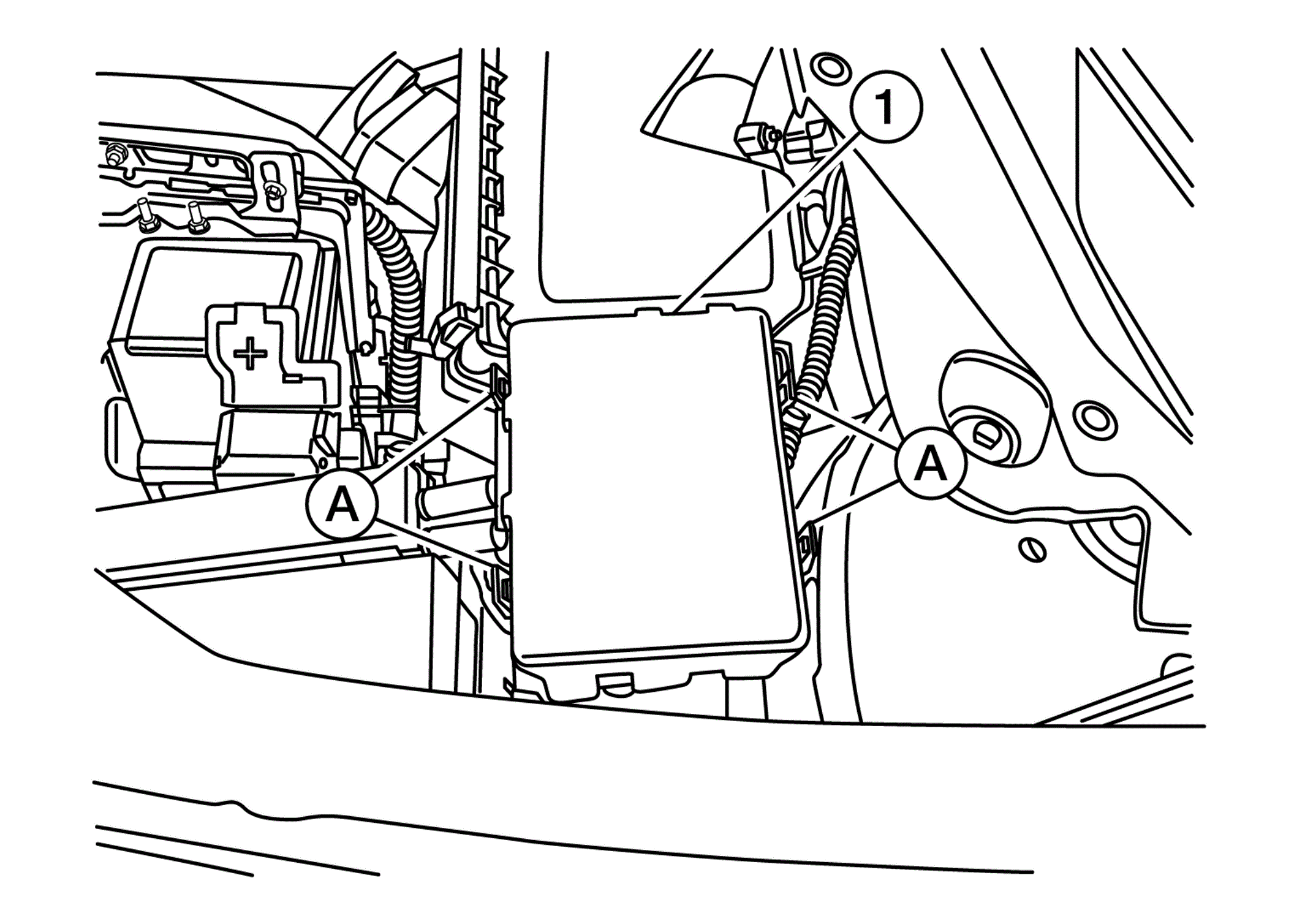

    Fig 1: Locating IPDM E/R And Pawls
    G08857438Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect all harness connectors (1) from the IPDM E/R (2) and remove.

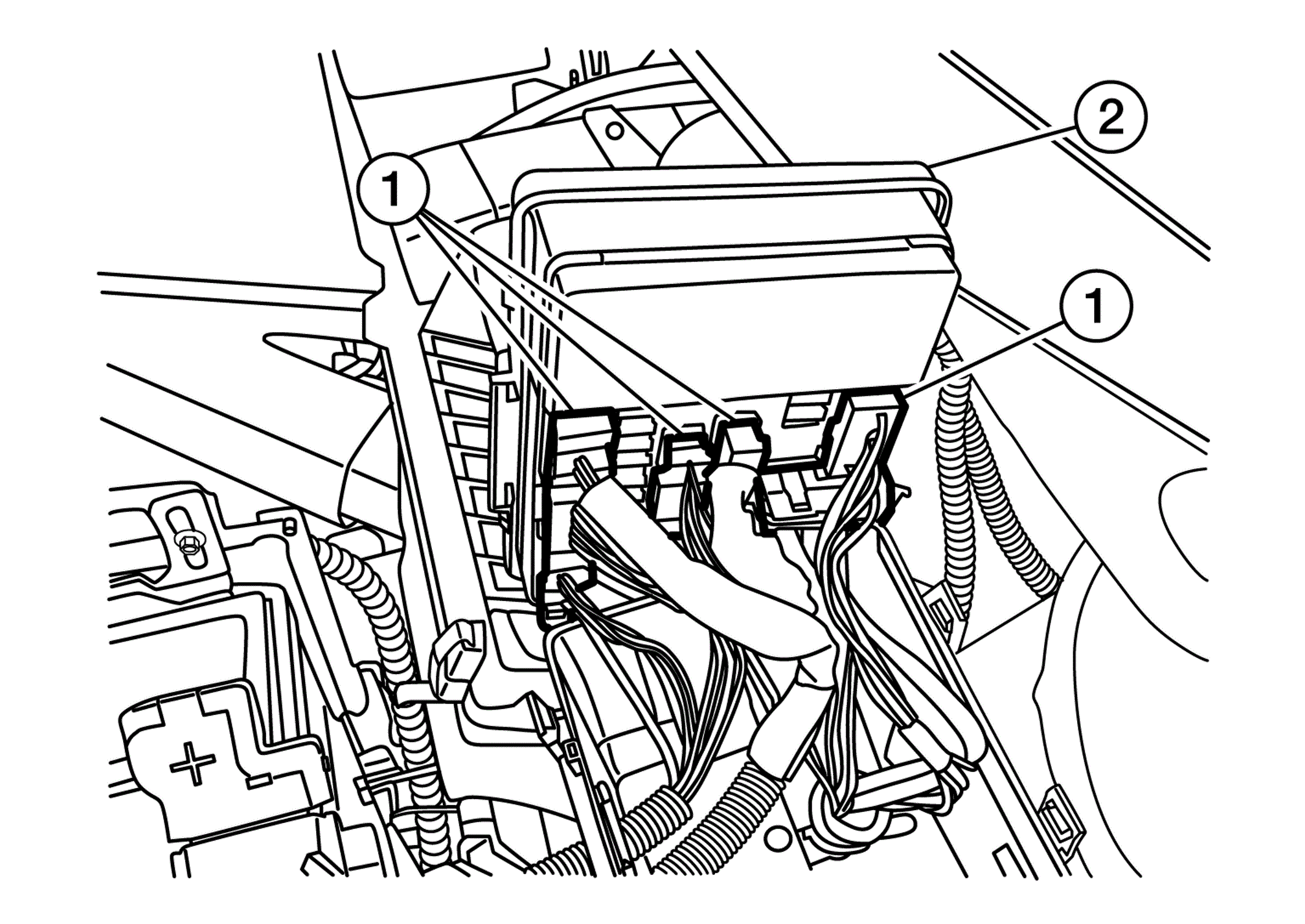

    Fig 2: Locating IPDM E/R And Harness Connectors
    G08857439Courtesy of NISSAN NORTH AMERICA, INC.
