Disassembly and Assembly: Notes

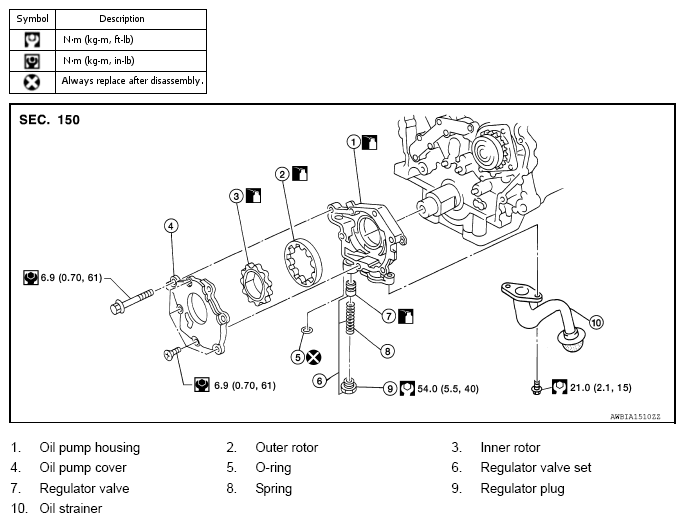

Fig 1: Disassembled View Of Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Before assembly, apply new engine oil to the parts as shown above.
