General Information
›
OEM General Information
›
Basic Inspection
›
Consult Checking System
›
CONSULT Function and System Application
CONSULT Function and System Application

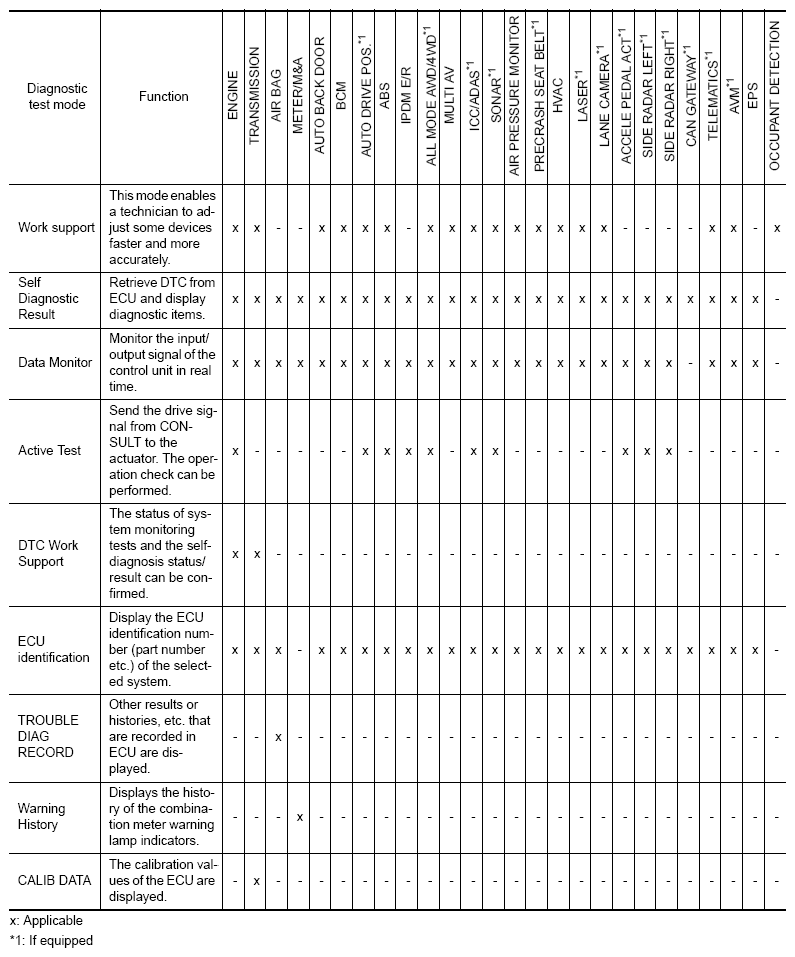

Fig 1: CONSULT Function And System Application Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
